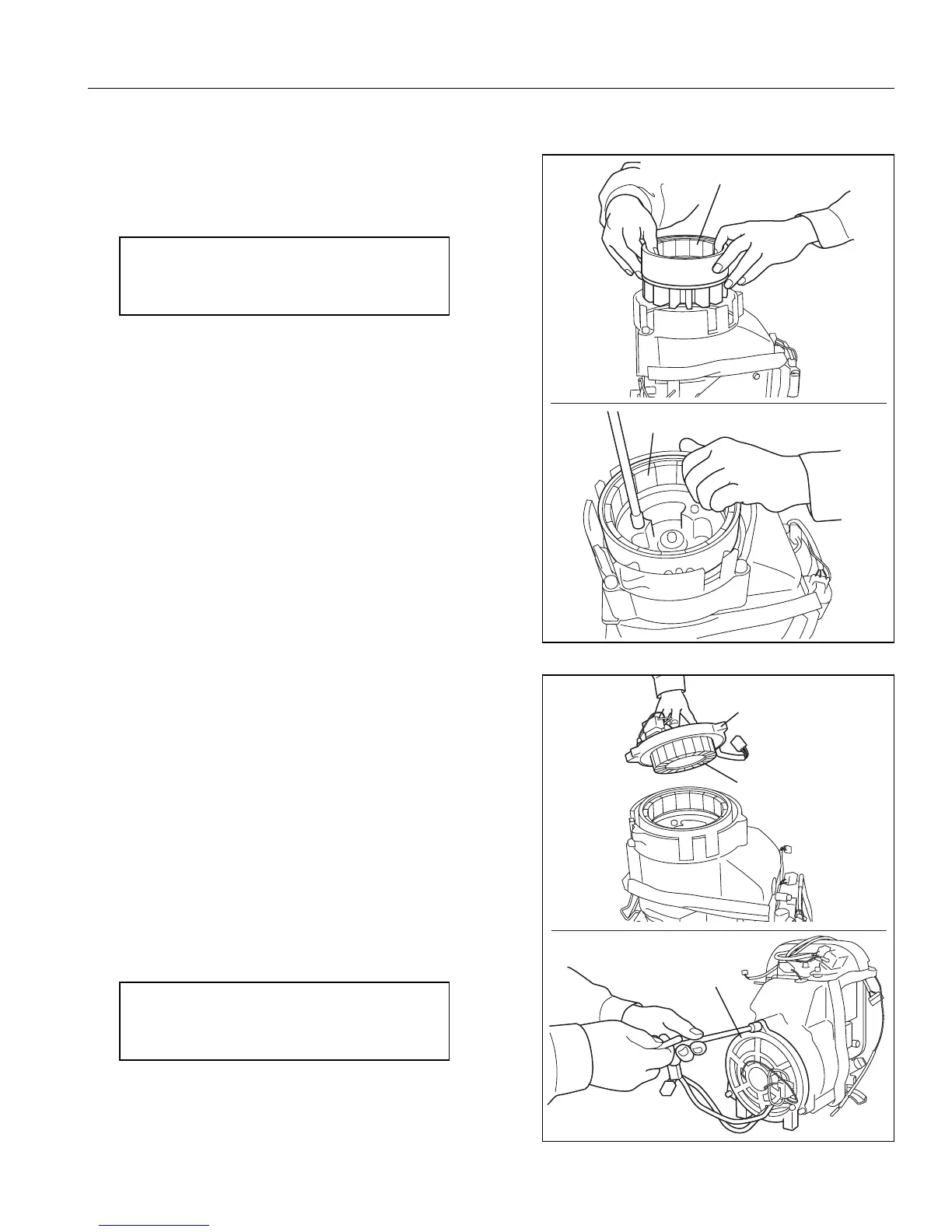

5-4-9 Rotor
Install the rotor.
M6 x 20mm Flange bolt : 3pcs.
Tightening torque : 10.0
-
12.0 N
・
m
100
-
120 kgf
・
cm
(7.4
-
8.9 ft
・
lbs)
<CAUTION>
The stator and the rotor are pulling each other by a
strong magnetic force. Please use care when
assembling the stator close to the rotor.
Carelessness may cause injury such as smashing a
finger.
NOTE : Avoid damaging the magnet of the rotor.
5-4-10 Rear cover, stator
Install the rear cover of the generator and stator into the
rotor.
Install the rear cover to the blower housing.
M6 x 25mm Flange bolt : 3pcs.
Tightening torque : 10.0
-
11.0 N
・
m
100
-
110 kgf
・
cm
(7.4
-
8.1 ft
・
lbs)
NOTE: The rotor and the stator are pulling each
other by a very strong magnetic force.
Make sure the rotor does not have foreign
substances on it, and fingers are not
smashed when installing.
NOTE: Make sure of the direction of rear cover
during installation.
