Robin R1700i Service Manual

– 31 –
Tightening torque : 7.0 - 9.0 N
・
m
70
- 90 kgf
・
cm
(5.2
- 6.6 ft
・
lbs)
5-4-13 Air cleaner bottom plate and carburetor
Install the insulator,gaskets, carburetor, baffle stay, and
air cleaner base plate into the cylinder head.
M6 Flange nut : 2pcs.
5-4-14 Air cleaner
Install the element and air cleaner cover onto the air
cleaner base plate.
M6 x 18mm Flange bolt : 1pce.
Air cleaner
base plate
Carburetor
Air cleaner
NOTE: Please do not forget to install the gasket.

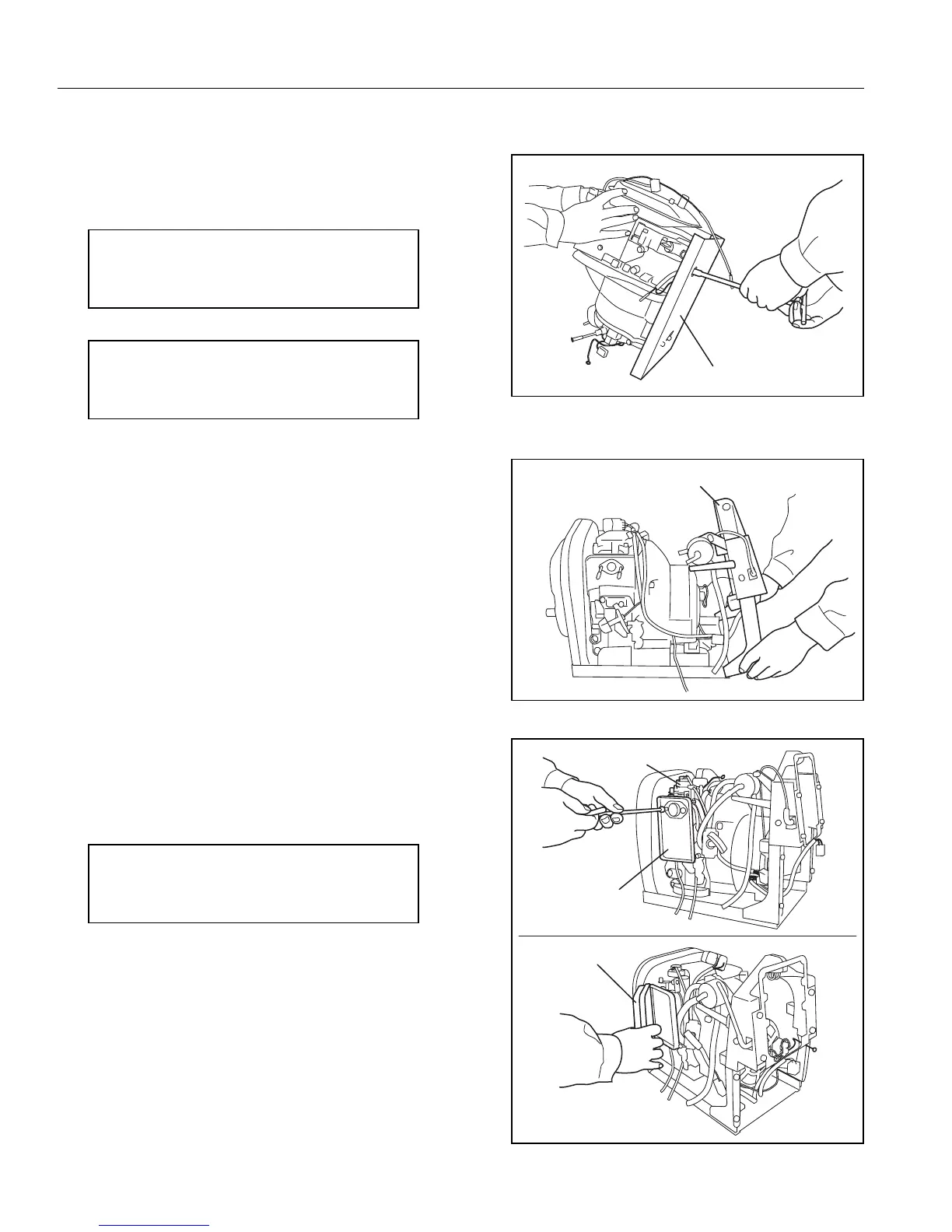

5-4-11 Base Inverter
Install the base inverter into the engine main body.
M8 x 20 Bolt and washer : 4pcs.
M6 Flange nut : 4pcs.
Tightening torque : 9.0-11.0 N
・
m
90-110 kgf
・
cm
(6.6
- 8.1 ft
・
lbs)
Tightening torque : 18.0 - 20.0 N
・
m
180
- 200 kgf
・
cm
(13.3
- 14.8 ft
・
lbs)
NOTE: Avoid cutting your hand by the sharp edge of
the base.
Base inverter
5-4-12 Front frame
Install the front frame (L) and (R) onto the base inverter.
Front frame
