– 32 –
Tightening torque : 3.0
-
4.0 N
・
m
30
-
40 kgf
・
cm
(2.2
-
2.9 ft
・
lbs)

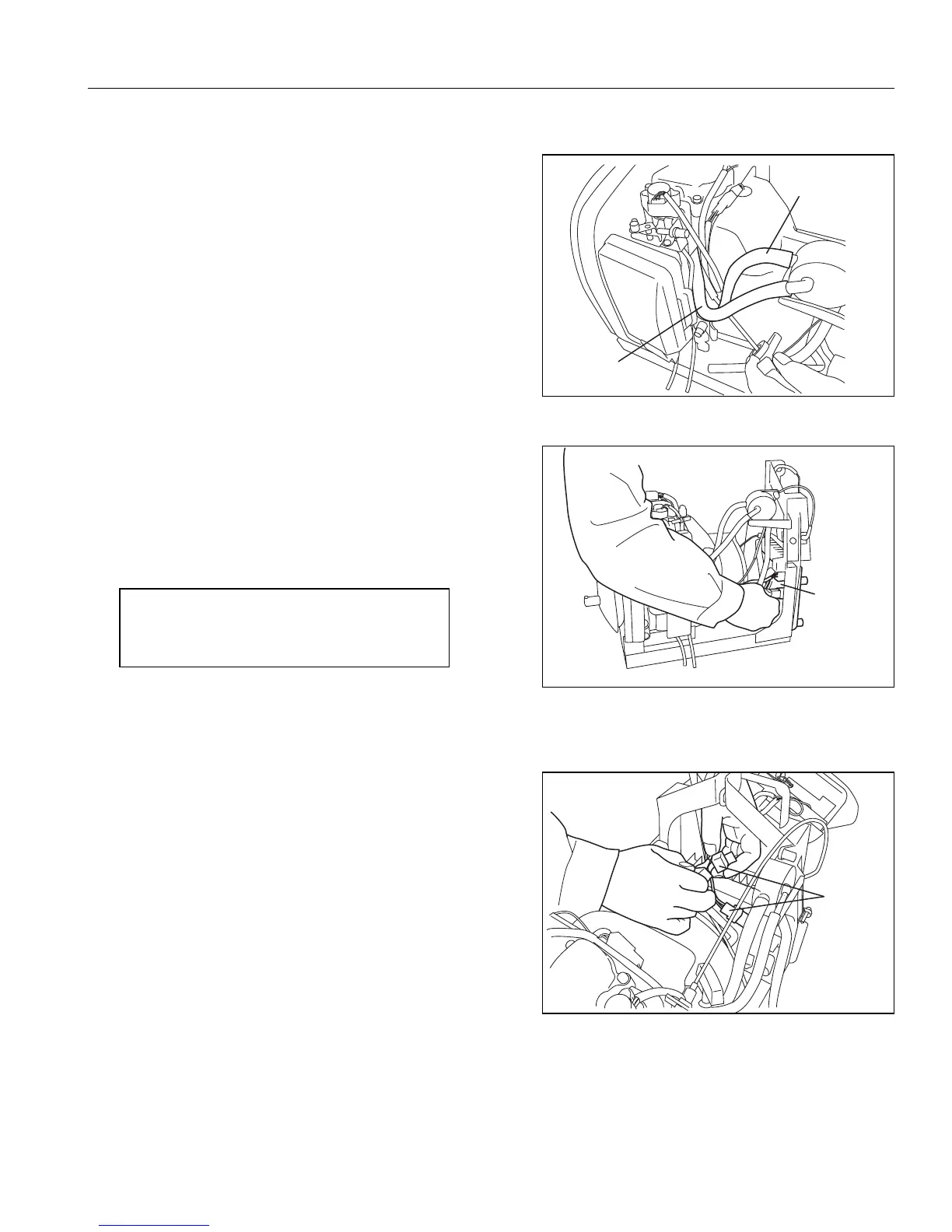

5-4-16 Inverter unit
Attach the inverter unit into the front frame.
A grounding wire shall be tightened together to the upper
right side of the inverter unit.
M6 x 20mm Flange bolt : 4pcs.
5-4-15 Fuel pipe
Connect the fuel pipes from the fuel pump to the
crankcase and carburetor and fasten with a hose clamp.
Fuel pipe
(Carburetor side)
Fuel pipe
(Crank case side)
NOTE: Assemble with care.
Avoid mis-connection of fuel pipes.
Inverter
unit
NOTE: When fastening, make sure there are no
mis-wiring of harness, or forgotten wiring.
Couplers
5-4-17
Installing coupler
Connect the harness of the control panel, and inverter unit.
Be sure to securely fasten the couplers of the harness
before installing the control panel.
