– 33 –

Tightening torque : 3.0

4.0 N

・

40 kgf

・

(2.2

2.9 ft

・

lbs)

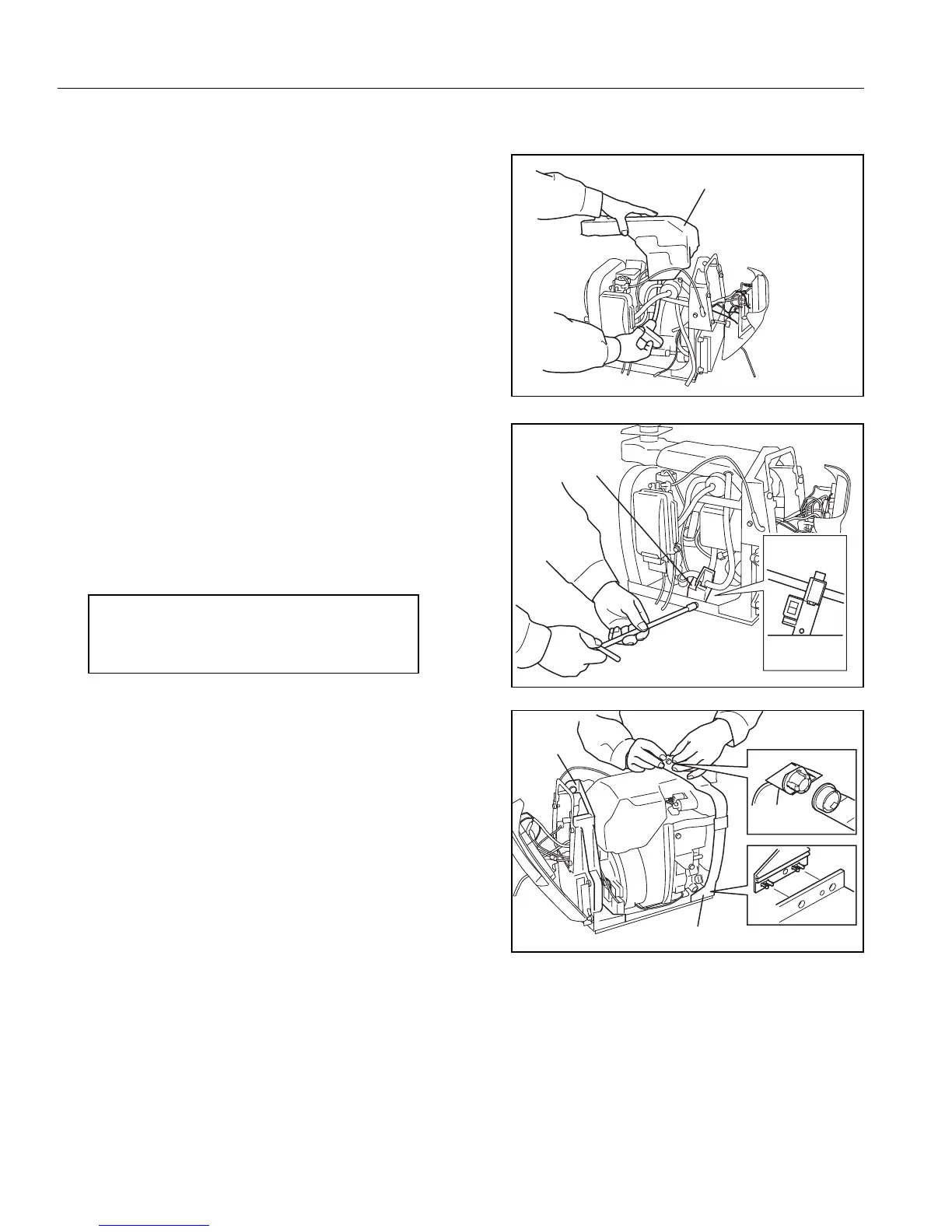

5-4-19 Fuel cock bracket

Install the fuel cock bracket into the base.

(Install the rubber pipe with the hose clamp

while the fuel cock is closed.)

M6 x 12mm Flange bolt : 1pce.

M6 Nut : 1pce.

Fuel cock

bracket

Base

surface

Mounting

angle

Fuel tank

5-4-18 Fuel tank

Attach the fuel tank and the fuel cock.

After the fuel tank is installed, connect the fuel line

between fuel cock and fuel pump.

Front

frame

Rear frame

5-4-20 Rear frame

Attach the rear frame (L) and (R) to the base inverter.
