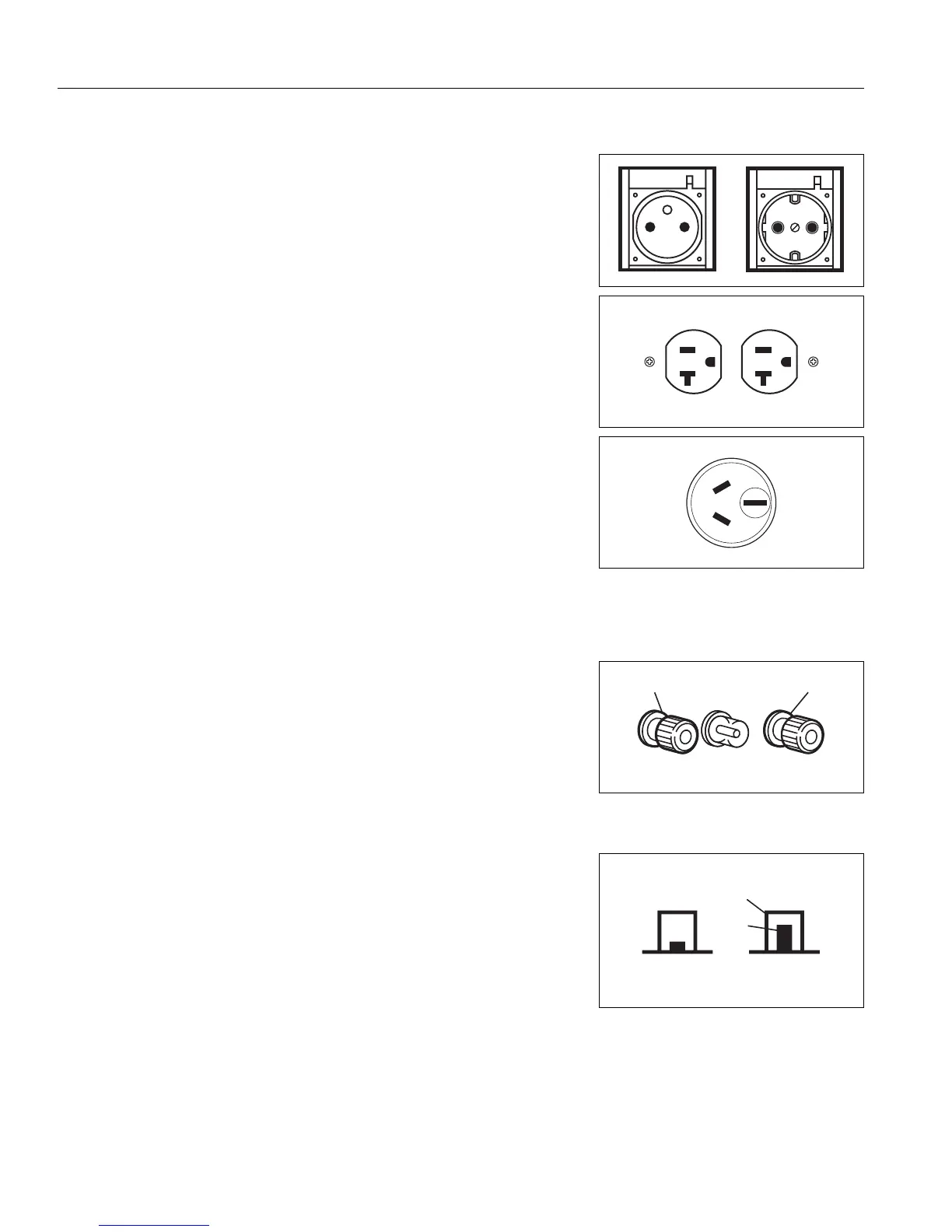

(6) DC TERMINALS
DC electric power for battery charge is available.
- Red is positive (+) terminal.
- Black is negative (
-
) terminal.
(7) DC CIRCUIT BREAKER
DC circuit breakers shut off electric current when the current
exceeds its limit.
Check for excessive current consumption. After making sure
everything is in order, push the button to the " ON " position.
Fully dischanged battery of large capacity may cause over-current
in DC output circuit.
(5) AC RECEPTACLES
AC electric power is available through this receptacle.
Use a ground type, three-leg plug.
