Robin R1700i Service Manual

– 20 –
Recoil starter
hundle
Guide
Overflow pipe

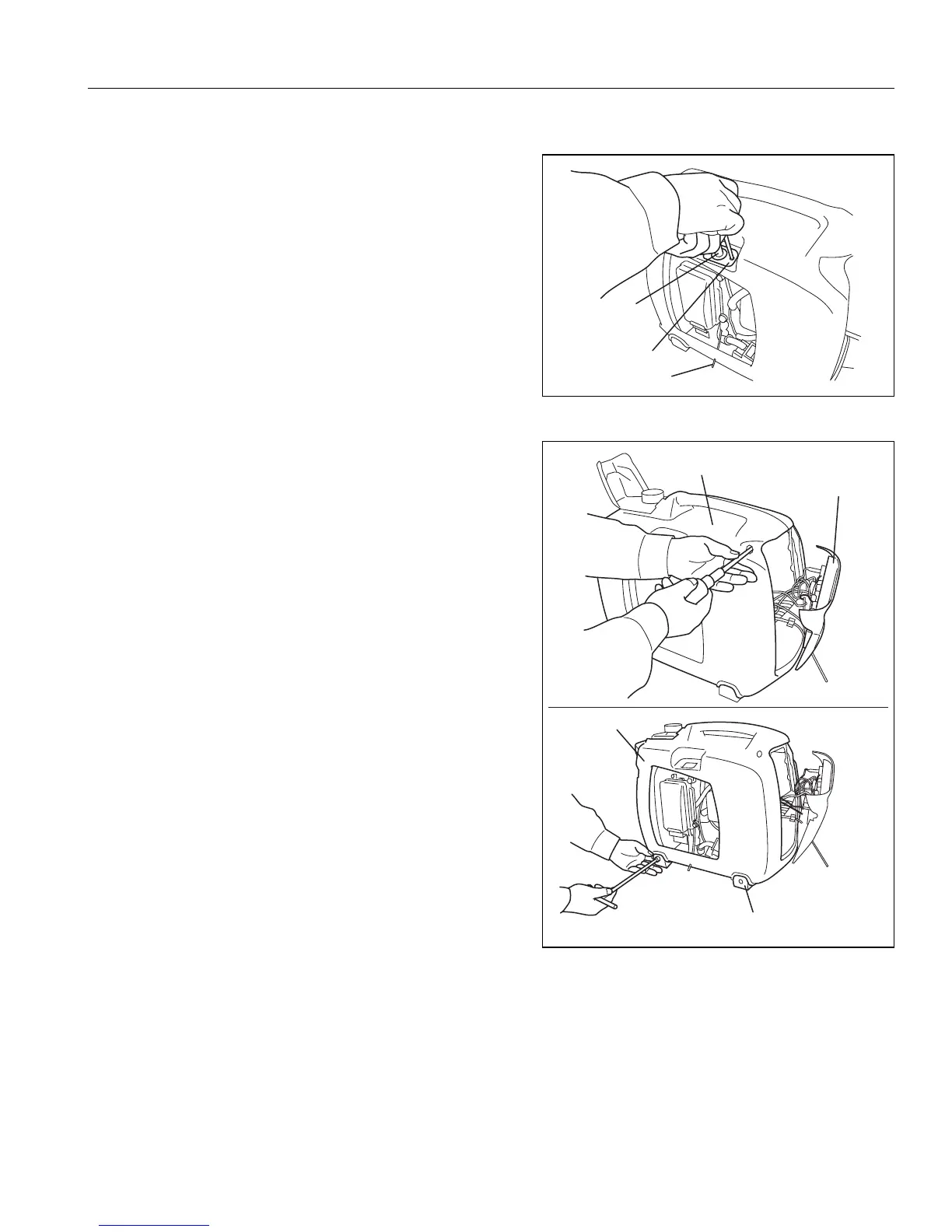

5-3-4 Remove the recoil starter handle
Remove the recoil starter guide connected to the case
body (left).
Push the guide and the starter hundle through the hole
which the case body (left) guide was attached.
M4 x 10mm Tapping screw :1pce.
Tools : Screw driver
Case body
Control Panel
Mount
Case body
5-3-5 Remove the control panel (1)
Remove the control panel from the case body.
M4 x 14mm Screw :4pcs.
M5 x 8mm Screw :4pcs.
Tools : Screw driver
NOTE: At this point, the couplers of electrical wires are
connected to the control panel. Instead of
removing the control panel forcibly, remove it
after disassembling the case body and fuel tank.
5-3-6 Remove the case body (Left, Right)
Remove the case body (Left, Right)
Remove the plastic pipe from the case body.
(Overflow pipe)
Upper part of the case body
M6 x 25mm
Screw and Washer : 2pcs.
M6 x 20mm Screw and Washer : 1pce.
M4 x 110mm
Screw : 1pce.
Tools : Screw driver
Bottom part of the case body
Remove the case with the mount still fastened to it.
M6 x 18mm Flange bolt : 4pcs.
Tools : 10mm Box wrench
