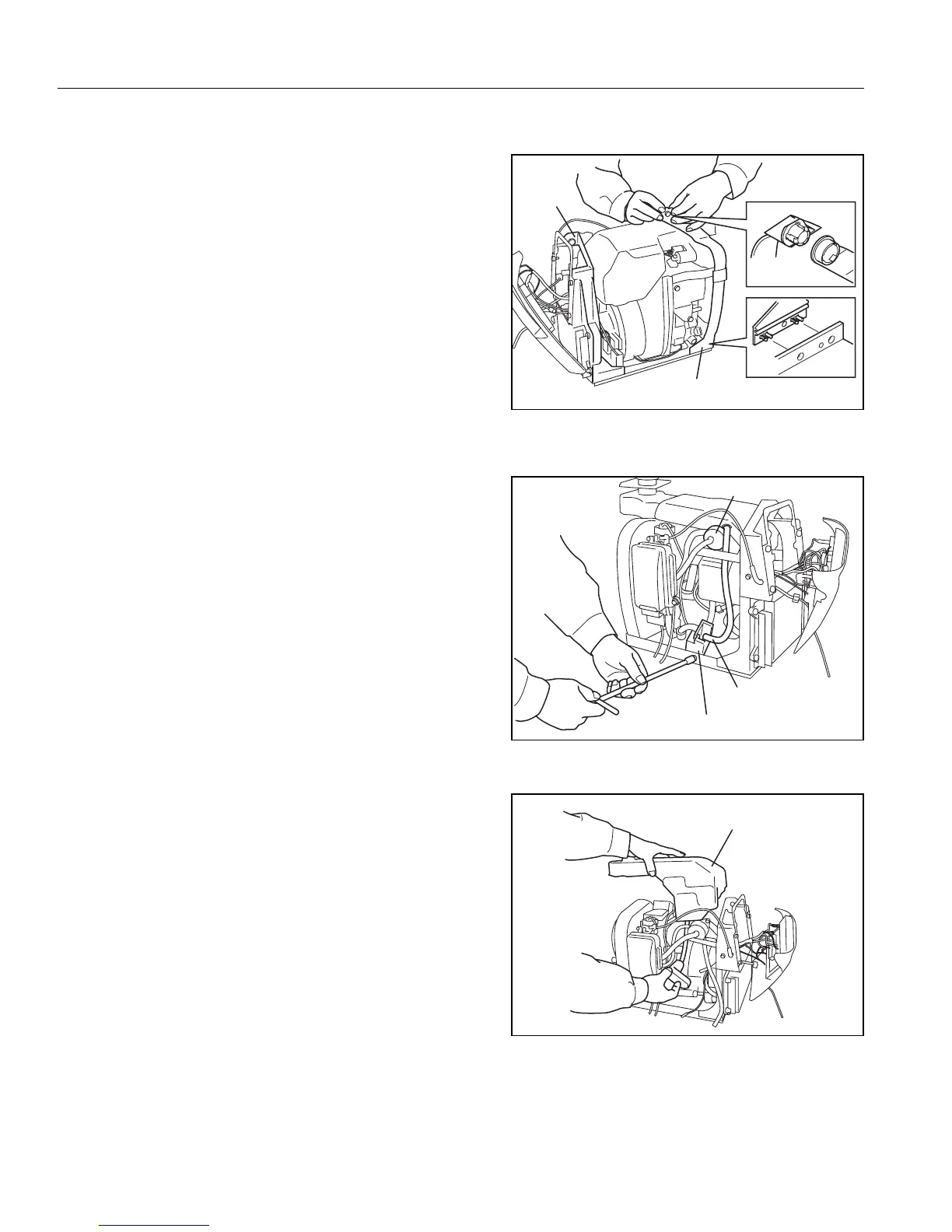

5-3-8 Remove fuel cock bracket

Remove the fuel cock bracket.

M6 x 12mm Flange bolt :1pce.

M6 Nut :1pce.

Tools : 10mm Box wrench

NOTE 1: Be sure to close the fuel cock before removing

the fuel pipe.

(Engine switch in the off position)

NOTE 2: A little fuel comes out from the fuel pump when

unplug the pipe.

Fuel cock bracket

Fuel pump

Unplug the pipe

5-3-9 Remove the fuel tank

Remove the fuel tank with the fuel cock still connected.

Fuel tank

Front

frame

Rear frame

5-3-7 Remove rear frame

Remove the rear frame.

– 21 –

Robin R1700i Service Manual
