– 22 –

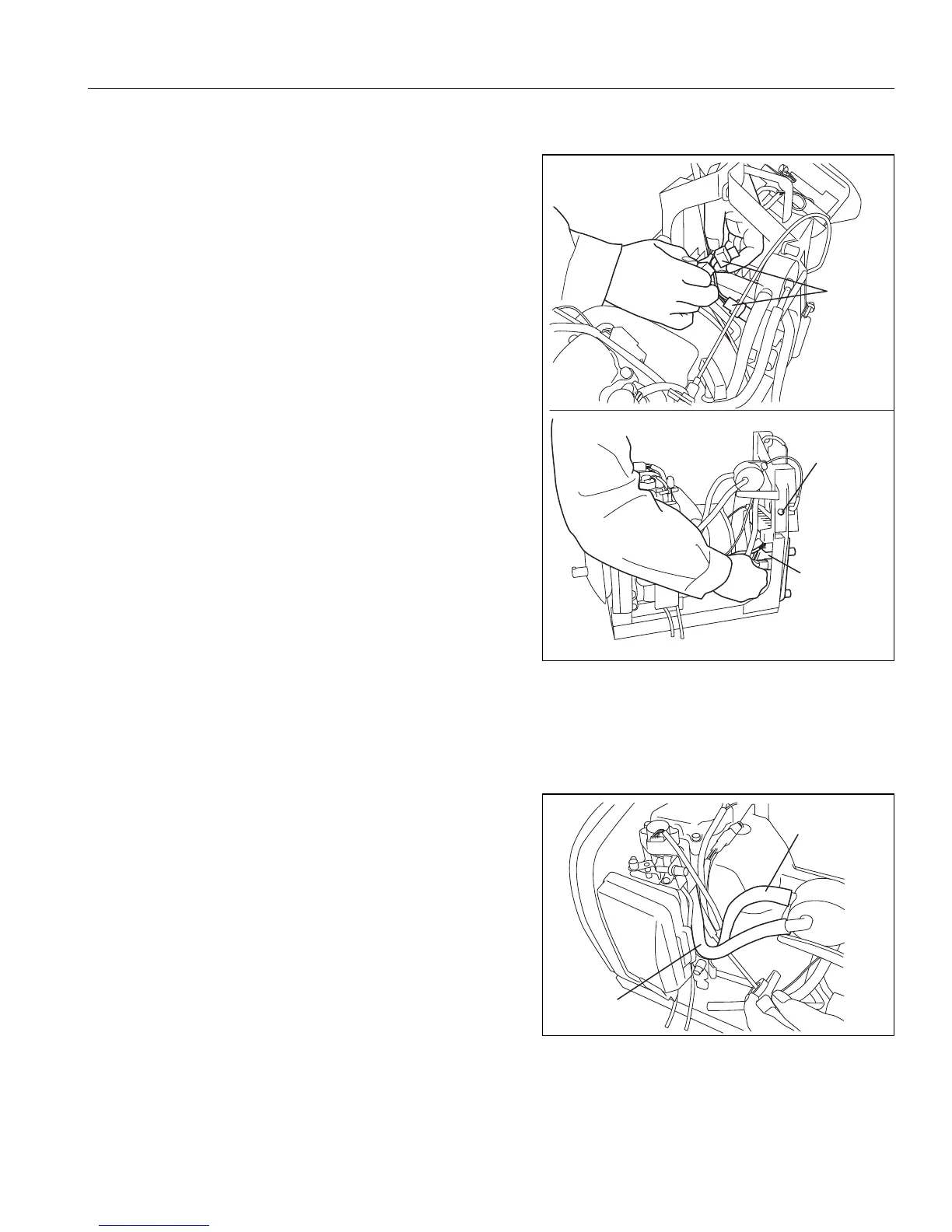

5-3-10 Remove the control panel (2)
Remove the control panel by pulling off the three couplers.
Remove the choke wire bracket from the front frame.
5-3-11 Remove the inverter unit
Disconnect the two couplers and remove the inverter
unit.
(one coupler from the alternator body, and one from the
engine throttle / ignition system.)
M6 x 20mm Flange bolt : 4pcs.
Tools : 10mm Box wrench
5-3-12 Remove the fuel pipes
Remove the fuel pipe from the fuel pump to carburetor
and the fuel pipe on crank case side.
Tools : Pliers
