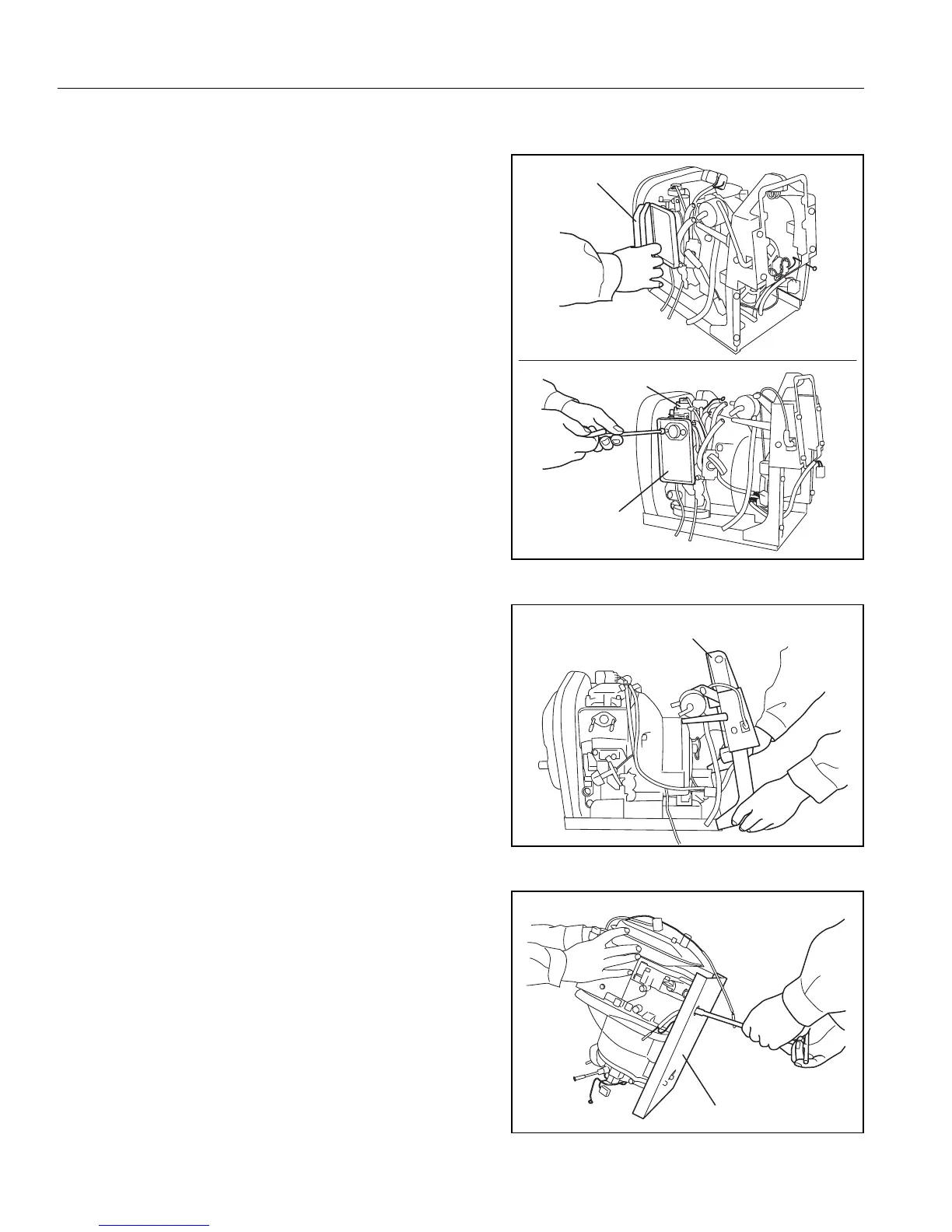

5-3-15 Remove the base inverter

Remove the base inverter.

M6 nut : 4 pcs, also

M8 x 16 Bolt and washer : 4pcs.

Tools : 12mm Box wrench

Base inverter

– 23 –

5-3-13 Remove the air cleaner and carburetor

Unhook the catch on the right side of the air cleaner.

Then remove the air cleaner cover and elements.

Loosen the two nuts and bolt to remove the base plate of

the air cleaner.

Then remove the carburetor.

M6 x 18mm Flange bolt : 1pce.

M6 Flange nut :2pcs.

Tools :10mm Box wrench

5-3-14 Remove the front frame

Remove the front frame.

Base plate

Carburetor

Air Cleaner

Front frame
