– 35 –

Tightening torque : 3.0

4.0 N

・

40 kgf

・

(2.2

2.9 ft

・

lbs)

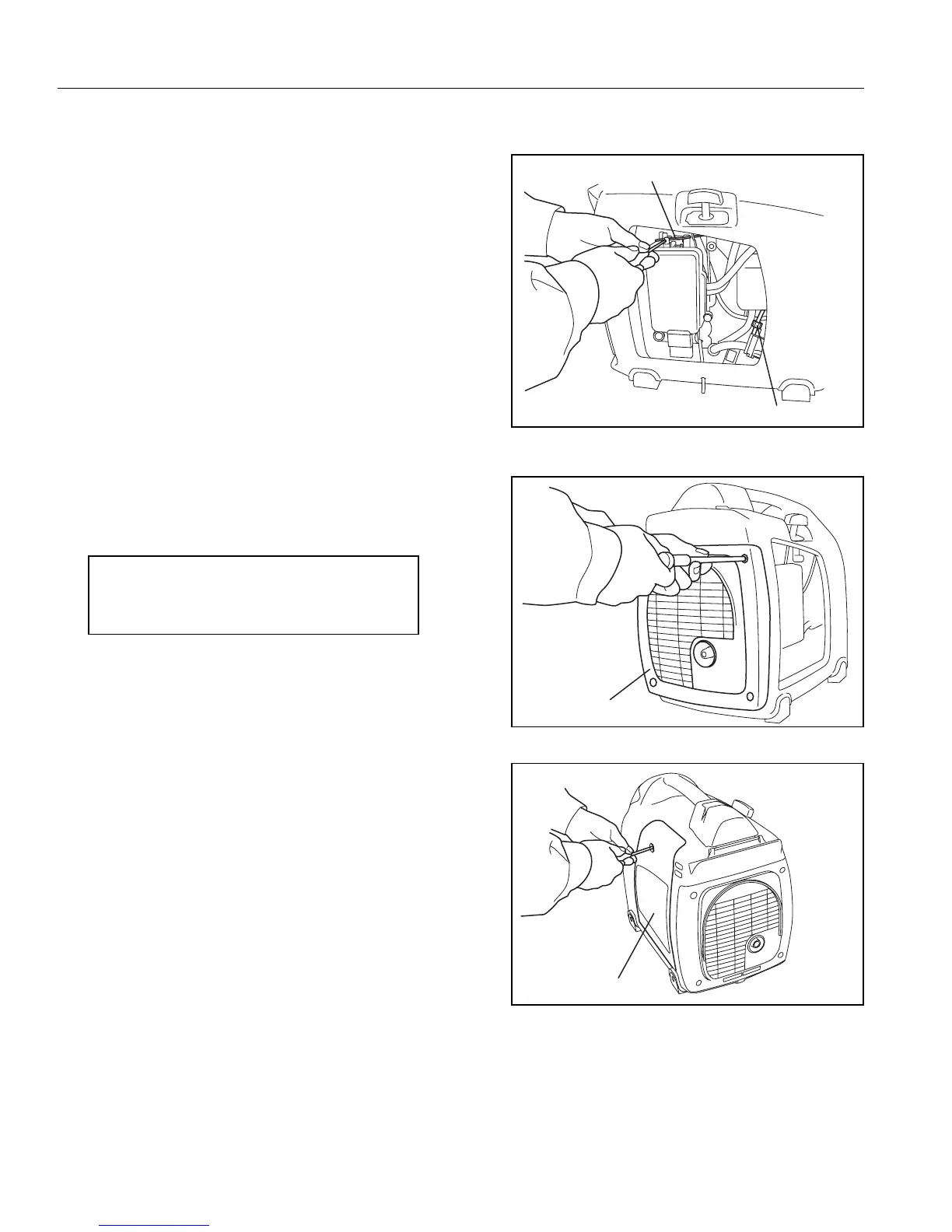

5-4-24

Rear cover

Attach the rear cover to the case body.

M6 x 30

Screw and Washer

: 4pcs.

Rear cover

5-4-25 Side panels (left and right)

Attach the side panel (left and right) to the case body.

M6 x 16.5mm Bolt : 2pcs.

Side Panel

This is the end of assembly procedures.

5-4-23 Choke wire and rolling wire

Install the choke wire into the choke shaft of the

carburetor.

Install the rolling wire into the wire plate and fuel cock

behind the control panel.

Rolling wire

Choke wire

NOTE: Use the engine switch to confirm that the

choke can be fully closed, and fully opened.
