Robomow RK1000 User Manual

40 41

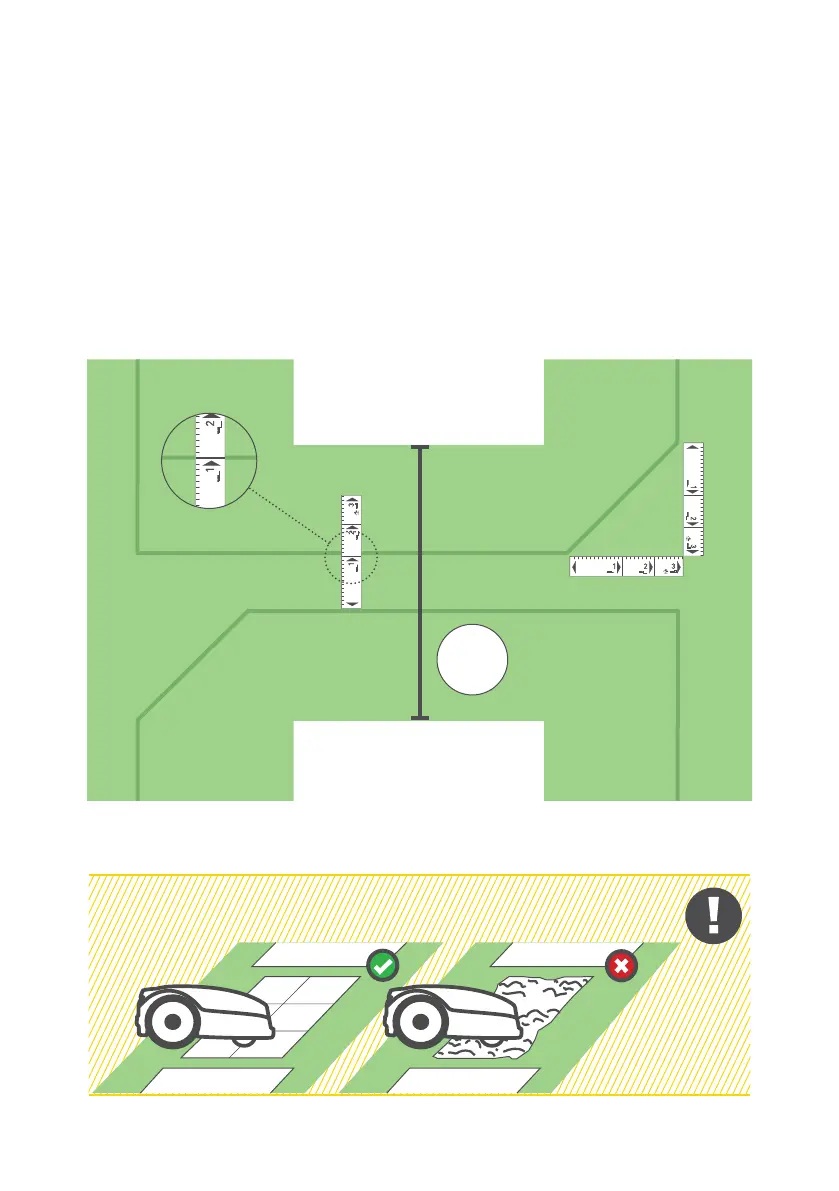

Narrow Passes should be rm, level, and smooth.
When a narrow pass is between 1-2m (3-6ft), the wires should be installed
the middle of the path with RoboRuler distance 1 between them to allow
the mower to be able follow the wires in and out of the sub zone. On the
entrance to the path from both directions, you should break the corner to 45
degrees so the mower will turn accurately in and out the sub zone.
45°
45°
W
1m < W < 2m
13cm
5"
45°
45°

Robomow RK1000 Specifications

General

Cutting Width	21 cm
Cutting Height	20-100 mm
Battery Type	Lithium-Ion
Battery Capacity	4.3 Ah
Max Lawn Size	1000 m²
Slope Capability	45%
Noise Level	60 dB
Battery Voltage	18 V
Charging Time	60-120 minutes
Working Time	60 minutes
