Robomow RK1000 User Manual

46 47

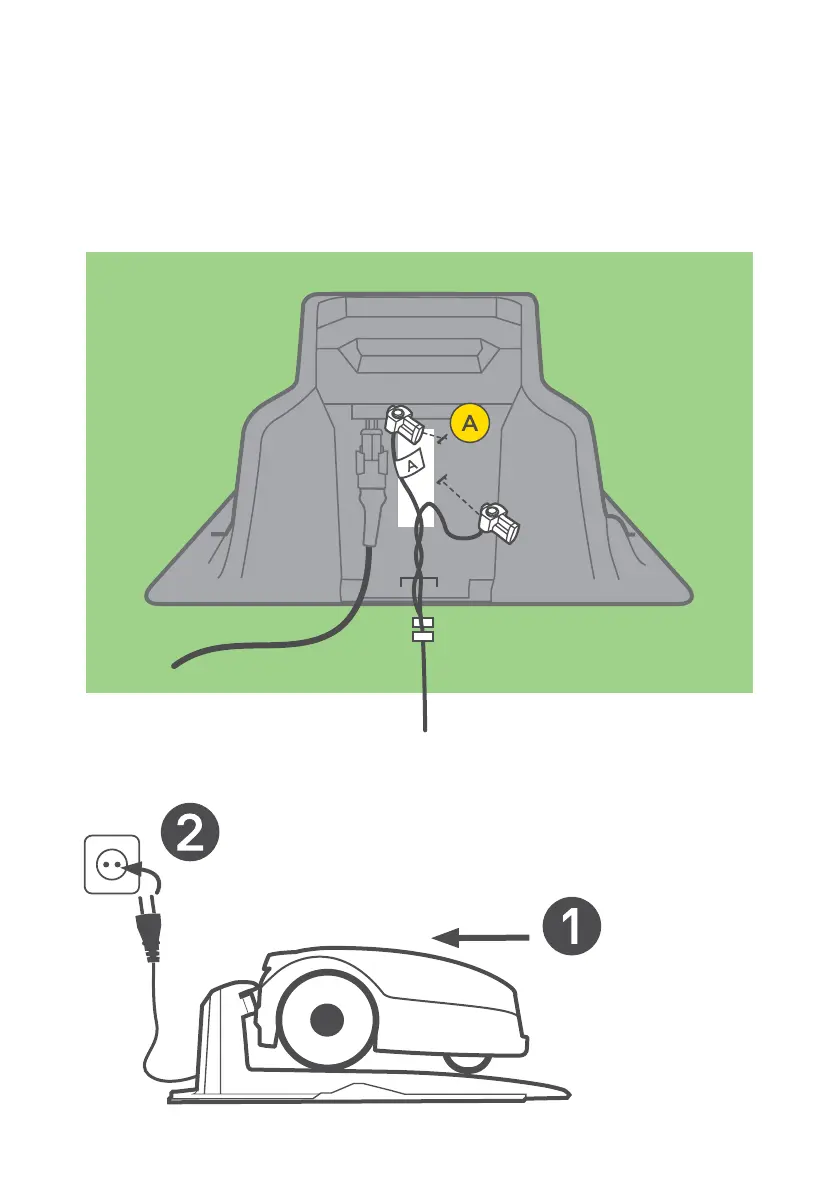

Peg the wire to the ground. Twist and wrap the wires so they could t
nicely in Base Station compartment. Connect the wire end marked with ‘A’
to the connector marked with A on the back of the Base Station. Connect
the other end to the other connector. Tuck the wire in and close the door.
Connect the power cable to the socket
Place mower in the Base
Station, make sure mower
is contacting the charge
arms

Robomow RK1000 Specifications

General

Cutting Width	21 cm
Cutting Height	20-100 mm
Battery Type	Lithium-Ion
Battery Capacity	4.3 Ah
Max Lawn Size	1000 m²
Slope Capability	45%
Noise Level	60 dB
Battery Voltage	18 V
Charging Time	60-120 minutes
Working Time	60 minutes
