Kobuki Turtlebot II. User’s Manual
6. Netbook cable modification
ATTENTION: This mod is OPTIONAL and may void the warranty of the netbook. This mod
is made under responsibility of the client.
Here you find the instructions to make a custom cable to power your netbook through the
Kobuki base.
6.1 Materials
- Heat shrink tube (2mm and 4mm)
- Scissors
- Soldering iron
- Solder
- Heat gun
6.2 Instructions

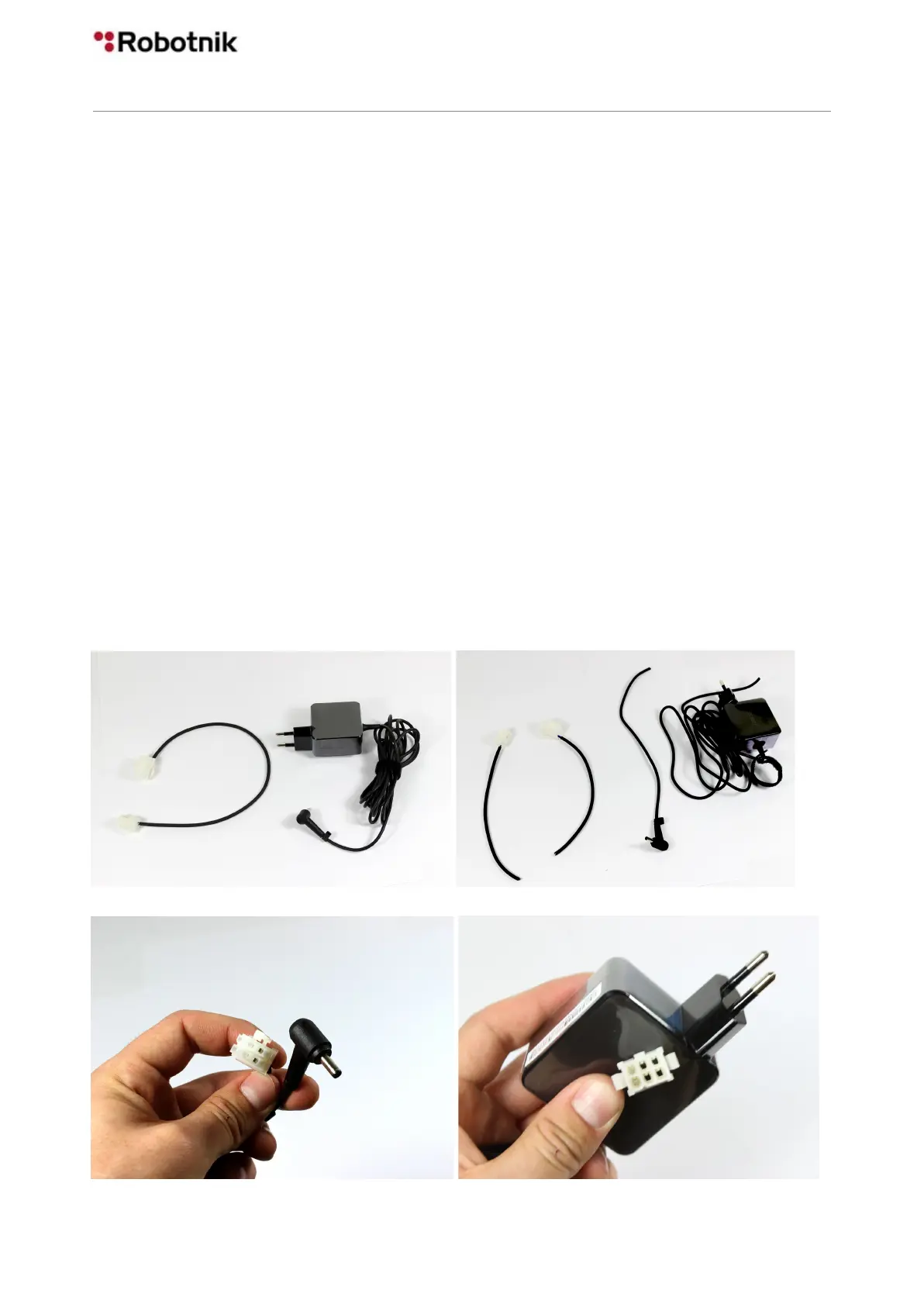

- Cut the cables as seen in the image.
- Male connector goes with Netbook plug - Female connector goes with DC adapter.
