Kobuki Turtlebot II. User’s Manual

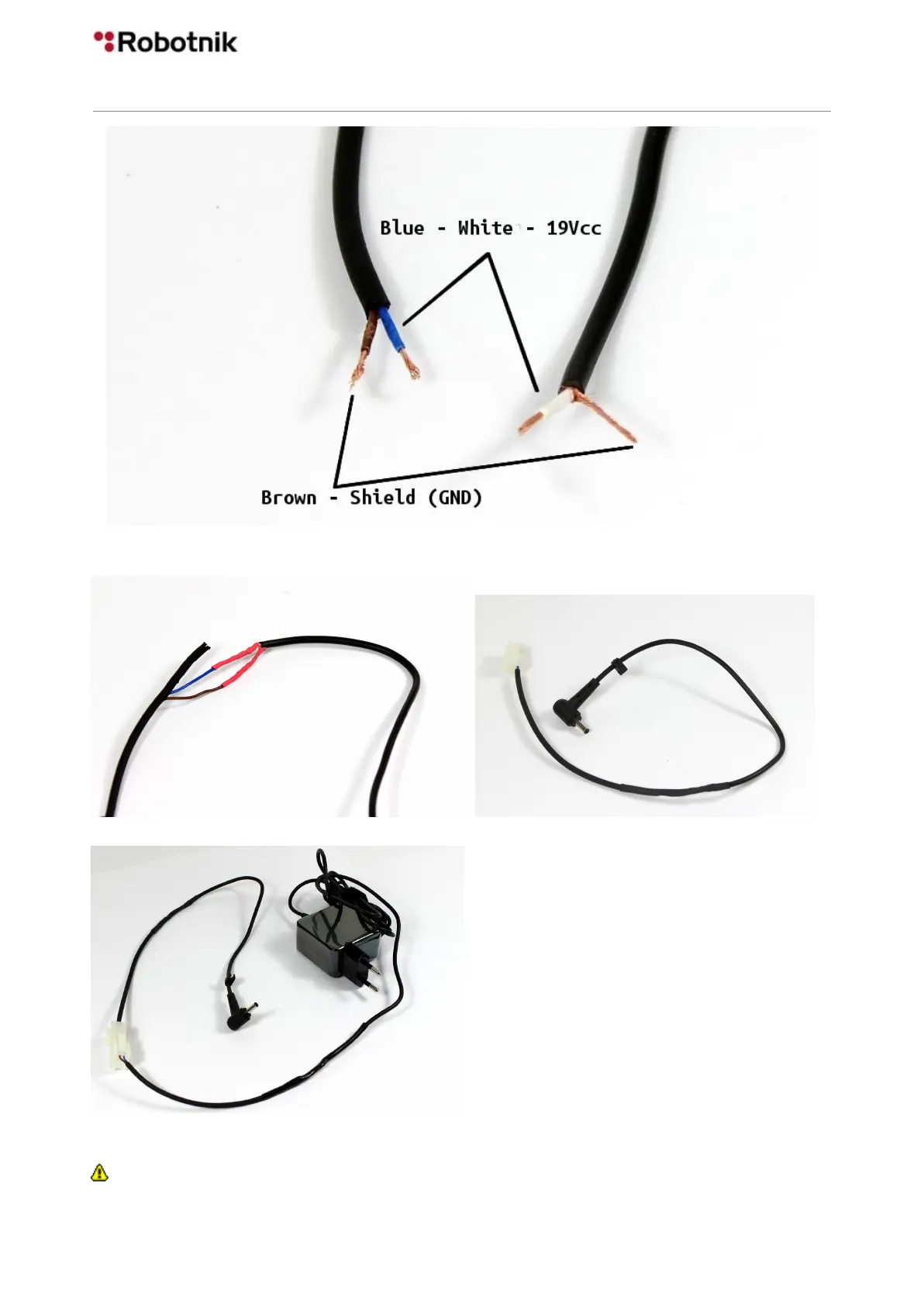

- Strip the cables and the the cable sheath. Pass the heat shrink tubes (first the big one)
and match cables as indicated.
- Then solder the cables and heat the shrink tubes. Repeat this with the other cable.
- Test both cables.
NOTE: Cable colours could be different depending on the netbook model. Please
check the polarity.
36
