RK3288 Hardware Design Guide
14 Display Interface
14.1 Schematic
RK3288 support many video output mode such as Parallel RGB, LVDS, MIPI, eDP,
HDMI, etc. 1% accuracy reference resistor should be taken for MIPI, LVDS, HDMI PHY,
as shown in Fig 14-1 to Fig 14-5.

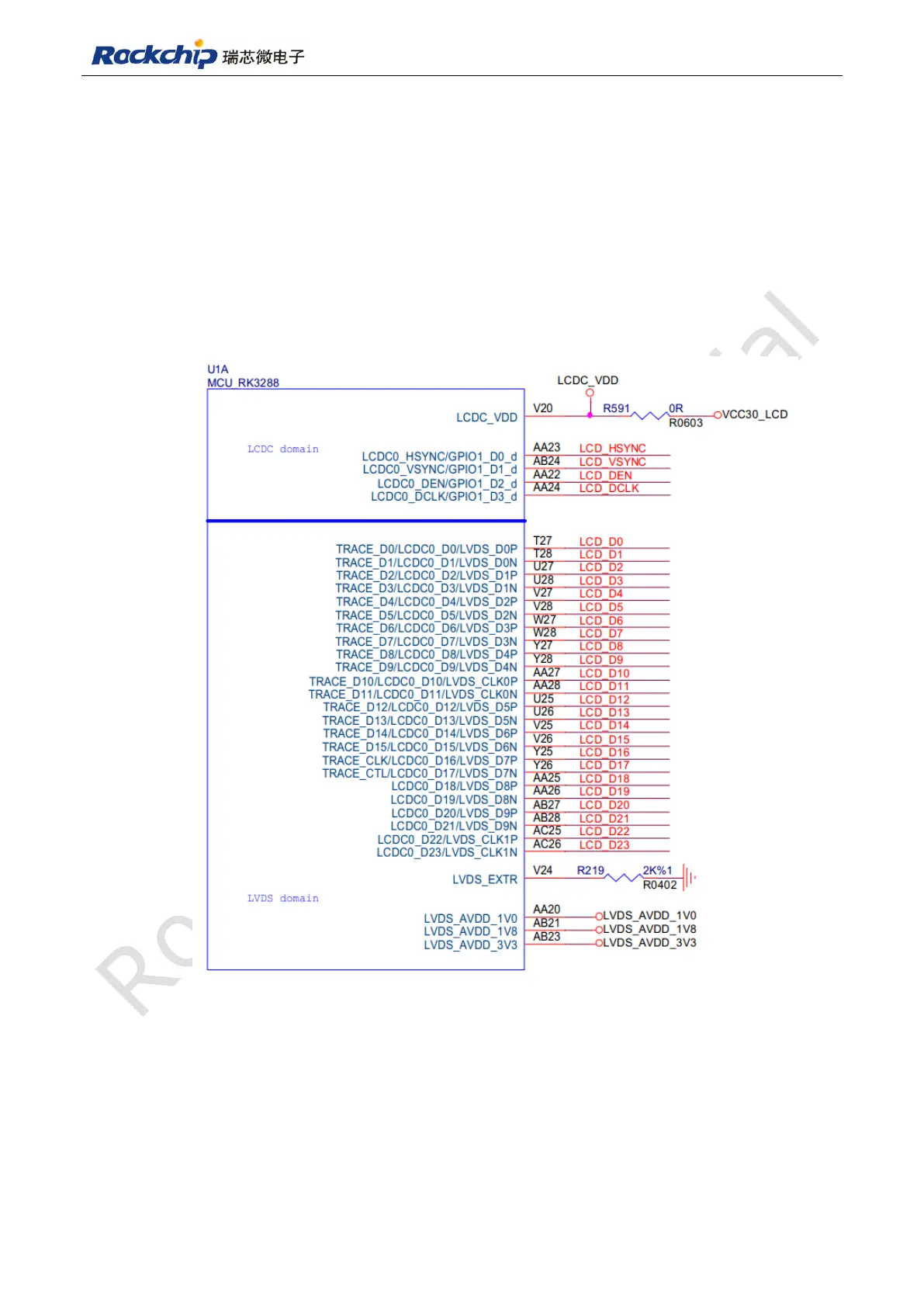

Fig 14-1
To Next Page
