RK3288 Hardware Design Guide
21 MAC
21.1 Schematic
Ethernet and FLASH1 are reusable, if Ethernet is used, then FLASH1 can't be used at the
same time.
MAC supports RMII and RGMII these two interfaces, Fig 21-1 is for Gigabit RGMII interface,
Fig 21- 2 is for 100M RMII interface.

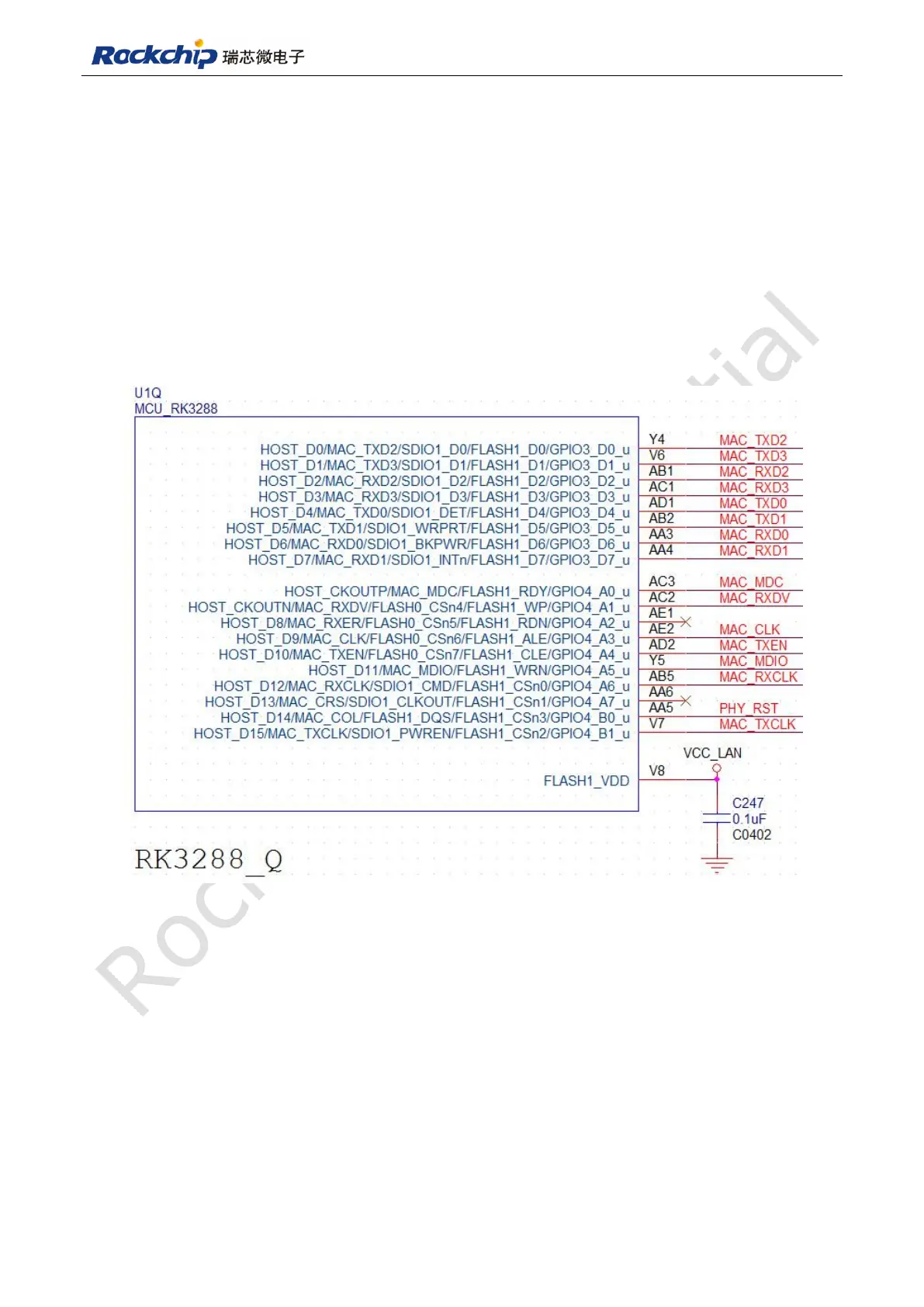

Fig 21-1
To Next Page
