RK3288 Hardware Design Guide

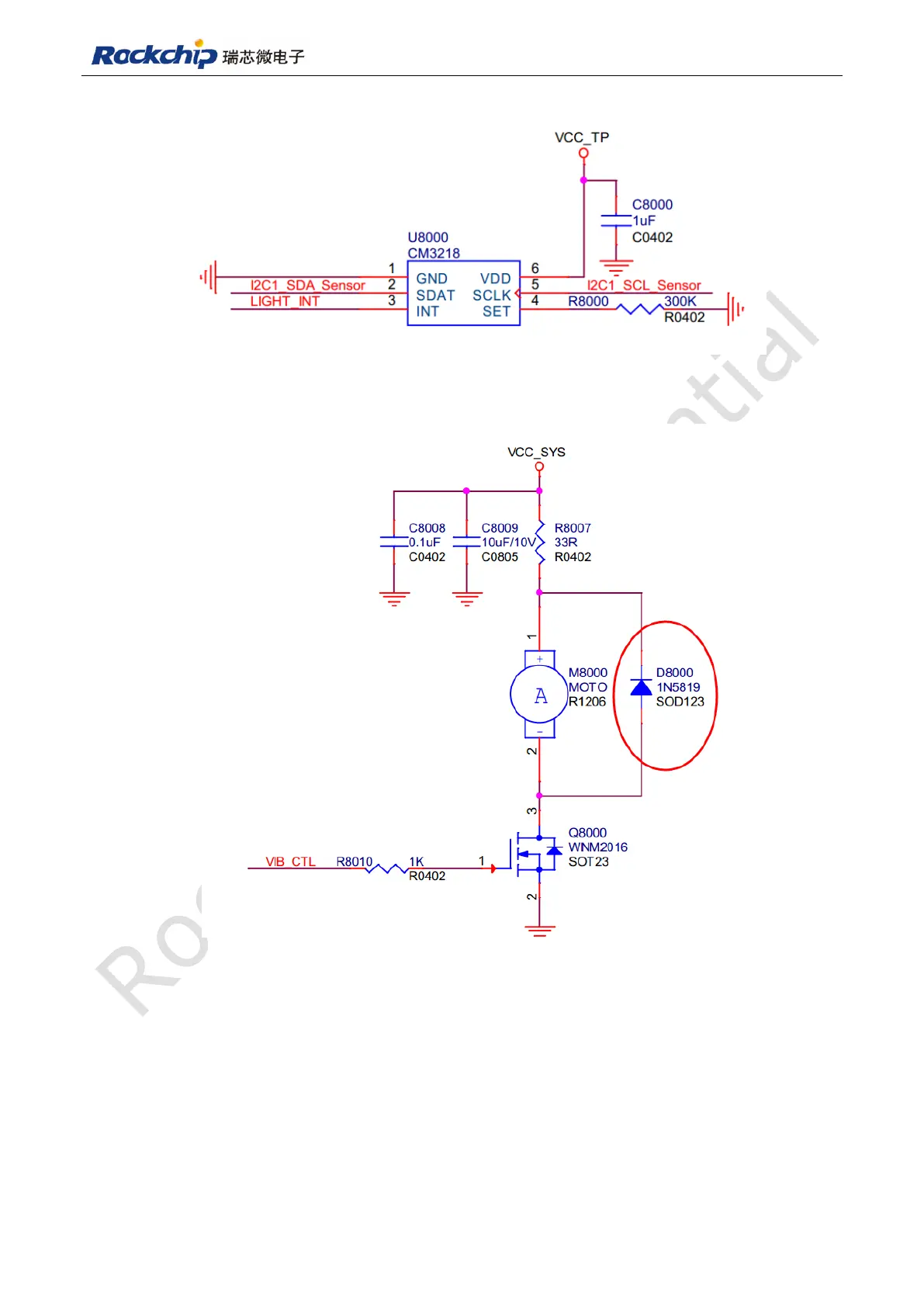

Fig 19-2
Motor is inductive device. It's necessary to add diode and pay attention to its direction.
Fig 19-3
The gravity sensor includes three compatibility design. SMT can be according to actual
needs to meet different compliance requirements.
