16
Need help? Call 1-800-620-2790 (U.S. and Canada)

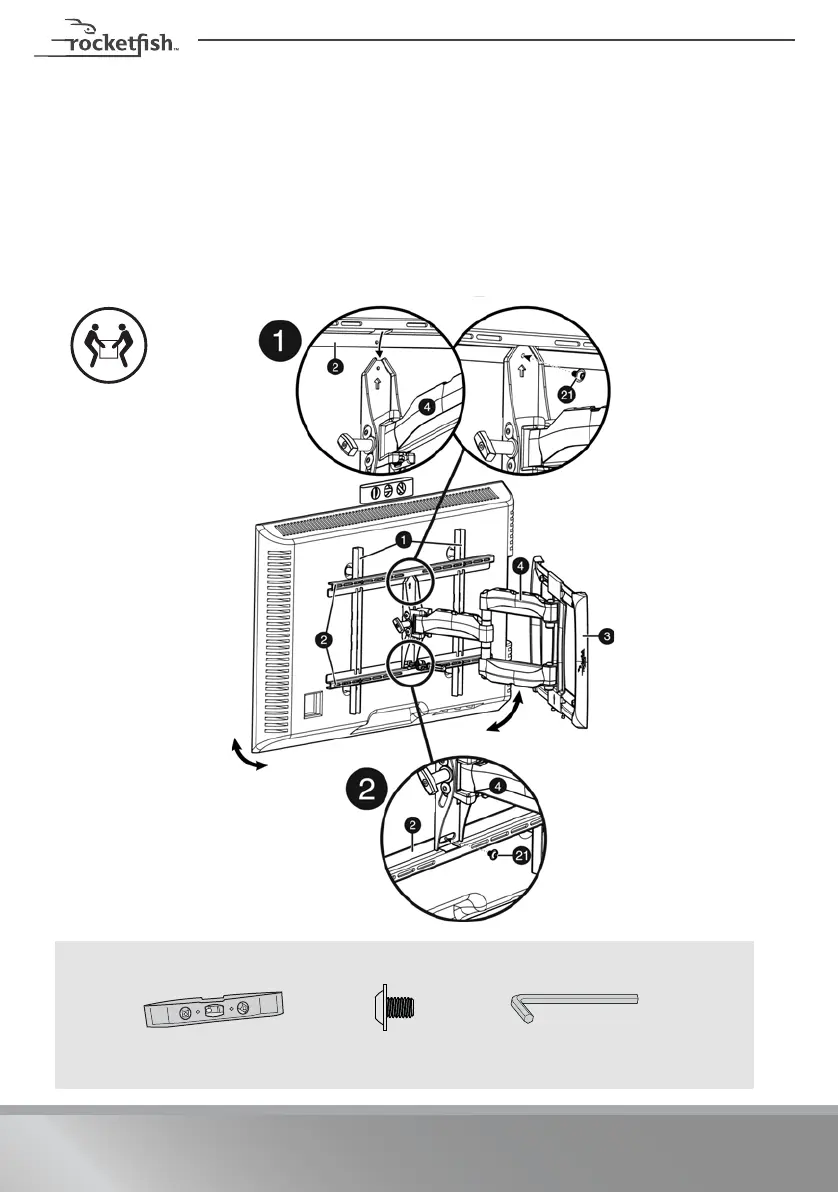

STEP 8 - Attach the TV to the arm
1 To make it easier to attach your TV to the wall plate, position the arm (4) so the
elbow is bent 90 degrees and pressed against the wall.
2 Hang the TV onto the arm (4) by first hooking the top support, then lowering the
bottom of the TV into place.
3 Lock the TV to the arm (4) with the TV interface screws (21).
IMPORTANT: The two TV interface screws must be installed to secure the TV onto the
wall plate assembly.
You’ll need
HEAVY! You will
need assistance
with this step.
TV interface screw
21 (Qty. 2)
Level
Hex key 20
RF-HTVMM170C_16-0577_MAN_V2_ENG_web.fm Page 16 Friday, August 5, 2016 11:18 AM
