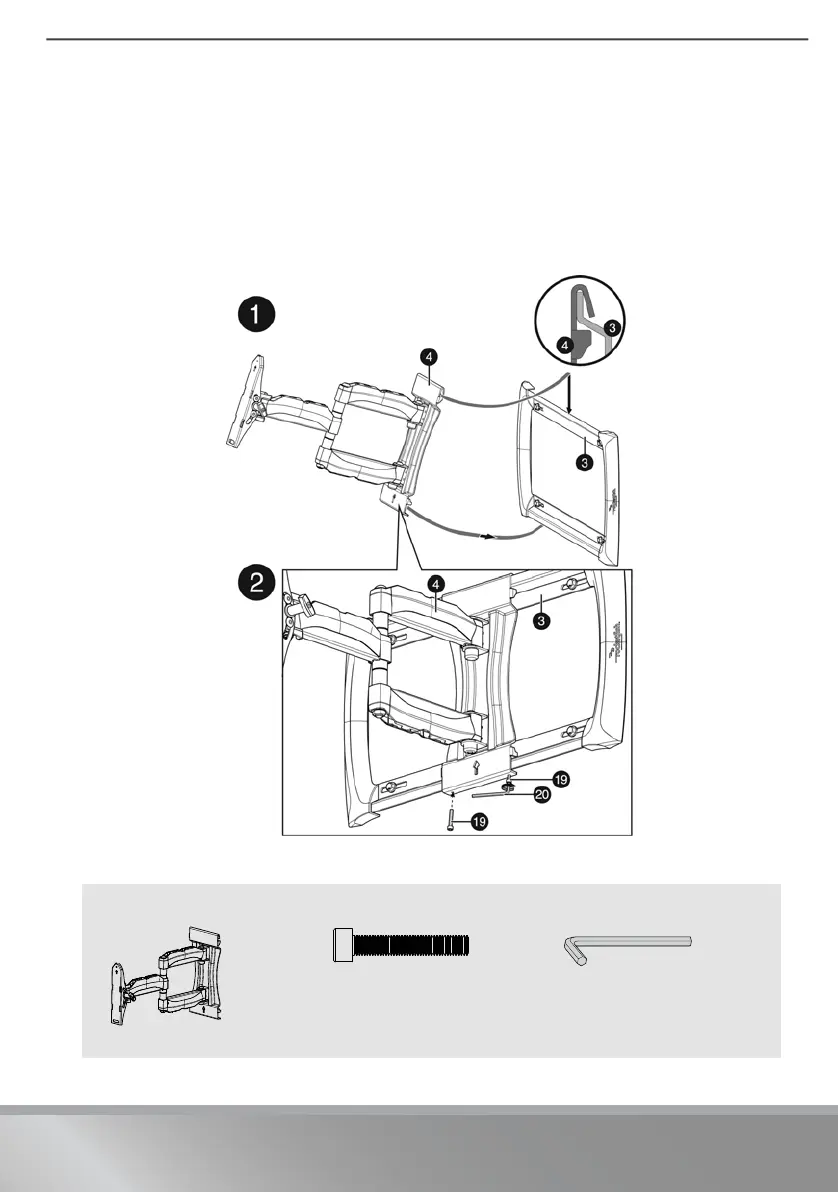

STEP 7 - Attach the arm to the wall plate
1Hang the arm (4) onto the wall plate (3)
by first hooking the top support, then
lowering the bottom of the arm into place.
2Lock the arm (4) to the wall plate (3) with the securement screws (19), using the
hex key (20).
IMPORTANT: These securement screws must be installed to secure the TV onto the
wall plate assembly.
You’ll need
Securement screws 19 (Qty.2)
Hex key 20
Arm 4
