13
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTVMM170C

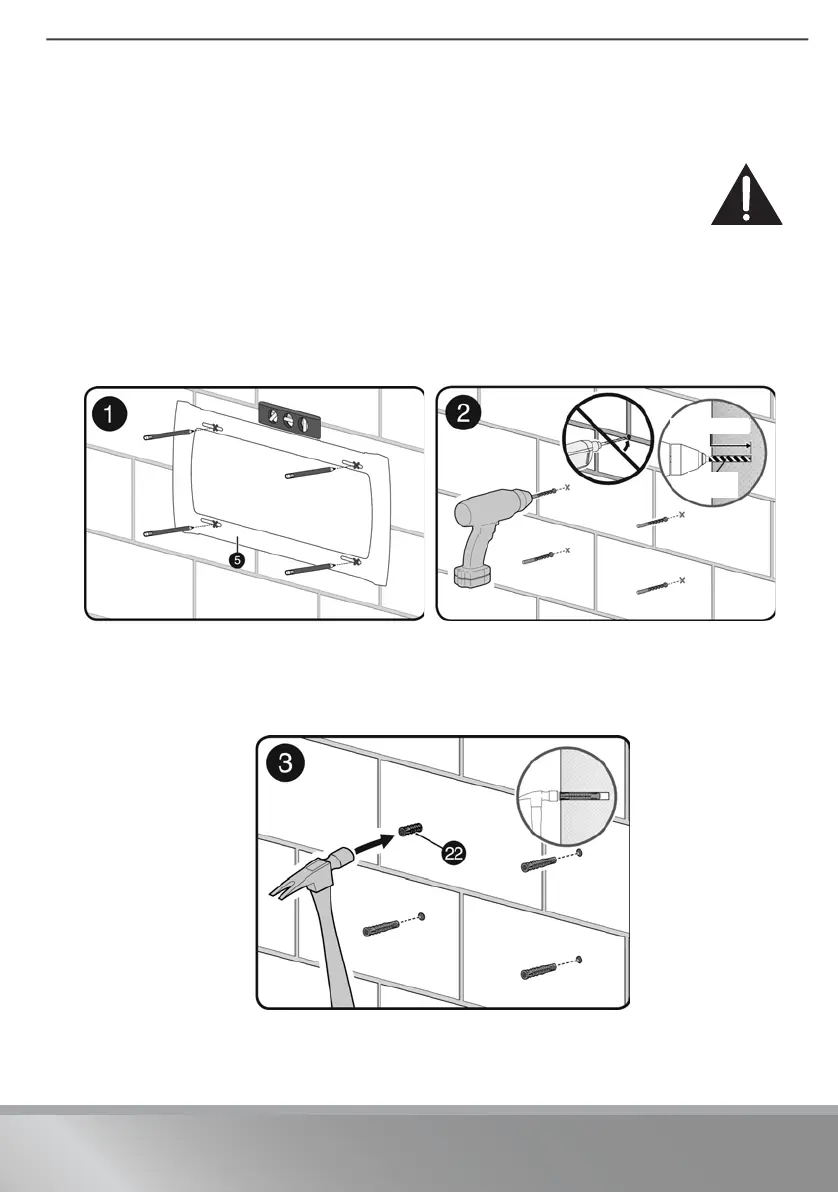

STEP 6 - Option 2: Installing on a solid concrete or concrete
block wall
CAUTION: To prevent property damage or personal injury, never drill into the
mortar between the blocks. Mount wall plate directly onto the concrete surface.
Note: Minimum solid concrete thickness: 8 in (203 mm). Minimum concrete block
size: 8 x 8 x 16 in. (203 x 203 x 406 mm).
1 Align the center of the wall plate template (5) at the height you determined in
the previous step and make sure that it is level. Tape the wall plate template to
the wall, then use a pencil to mark the four lag screw hole locations. Remove the
wall plate template.
2 Drill pilot holes to a depth of 3 in. (76 mm) using a 3/8 in. (10 mm) diameter
masonry drill bit.
3 Insert the concrete wall anchors (22) (refer to “Concrete Installation Kit CMK1
(not included)” on page 4) into the pilot holes and use a hammer to make sure
that the anchors are flush with the concrete surface.
3 in (76 mm)
3/8 in
(10 mm)
RF-HTVMM170C_16-0577_MAN_V2_ENG_web.fm Page 13 Friday, August 5, 2016 11:18 AM
