RF-HTVMM170C
Installation instructions
Step 1 - Determine whether your TV has a flat back or an
irregular or obstructed back
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the
documentation that came with your TV for instructions.
3 Temporarily lay the vertical brackets (1) on the back of your TV.
4 Align the screw holes in the vertical brackets with the mounting screw holes on
your TV.

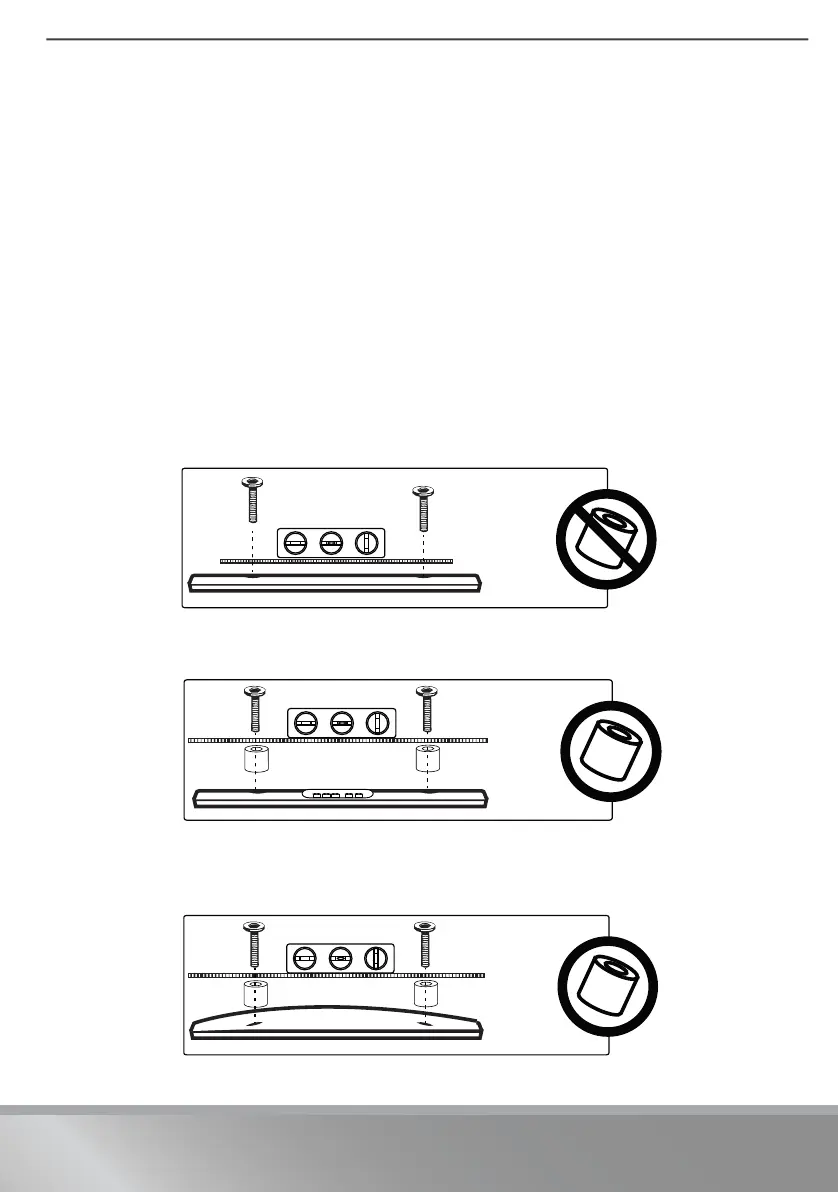

5 Identify which type of back your TV may have:
• Flat back: The brackets lay flush against the back of your TV and do not
block any jacks. You do not need spacers when assembling the wall
mount.
• Obstructed back: The brackets block any of the jacks on the back of
your TV. You will need spacers (7 or 8) when assembling the wall mount.
• Irregularly-shaped back: There is a gap between the brackets and
some part of the back of your TV. You will need spacers (7 or 8) when
assembling the wall mount.
6 Remove the vertical brackets.
RF-HTVMM170C_16-0577_MAN_V2_ENG_web.fm Page 5 Friday, August 5, 2016 11:18 AM
