STEP 9 - Making adjustments and managing cables
1 The following adjustments are available by loosening the tilt control knob.
NOTE: Once your TV is in place, tighten the tilt tension knob to prevent unwanted
movement.
2 Manage cables by fully extending the arms to provide enough slack, then
routing cables along the arms and inserting them into the channels on the arms,
providing a clean look to your installation.

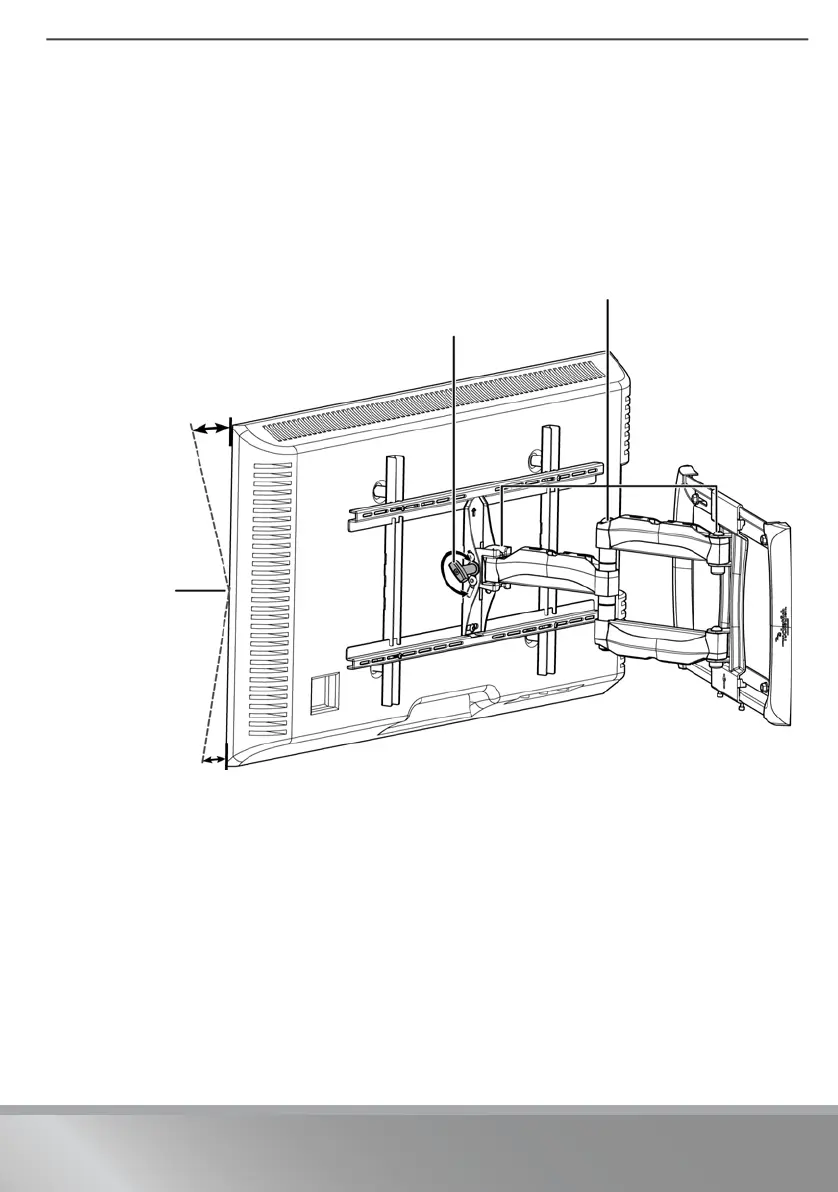

Fully articulating arm, with
three pivot points, allows a
choice of viewing positions.
Adjustments allow
tilt control of TV.
10°
5°
TV tilts up or
down for a
choice of
viewing angle.
