8
Need help? Call 1-800-620-2790 (U.S. and Canada)

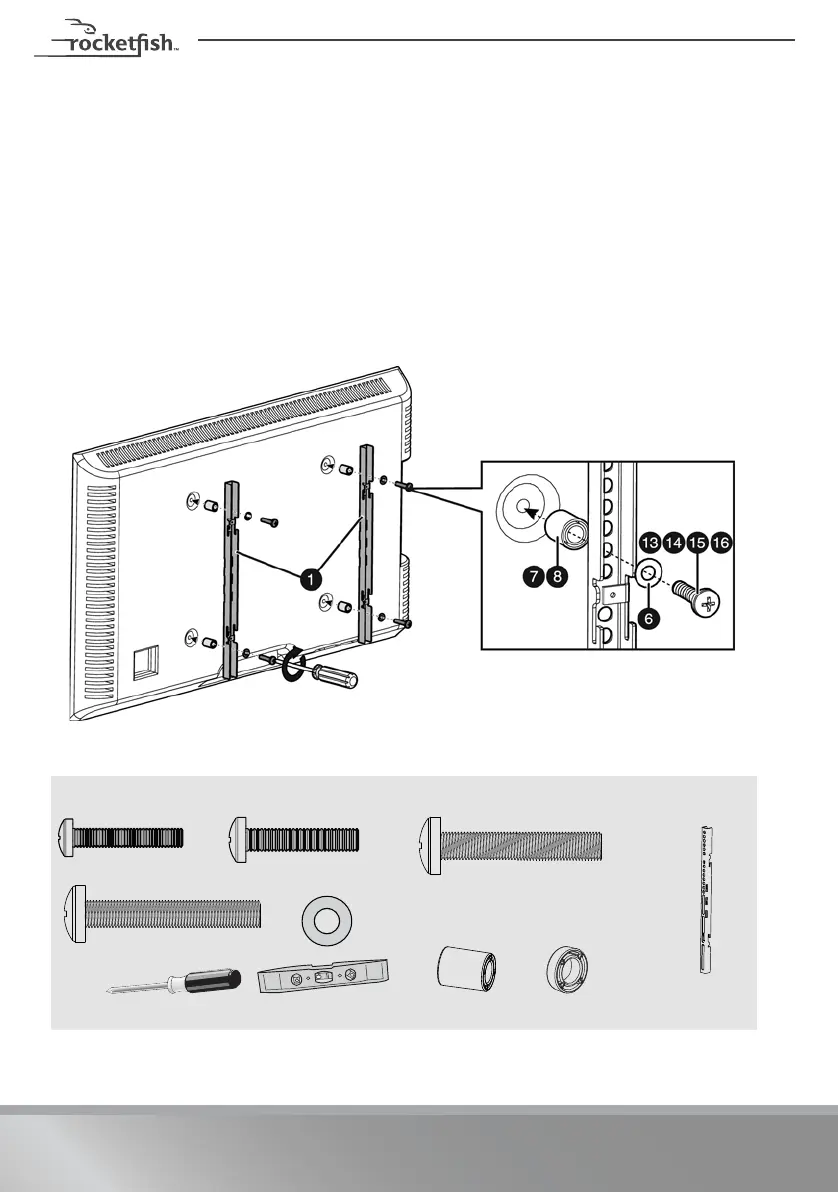

STEP 3 - Option 2: Attaching the vertical brackets to TVs
with irregular or obstructed backs
1 Place the 2.5 mm (7) or 22 mm spacers (8) over the screw holes on the back of
the TV.
2 Align the vertical brackets (1) over the spacers (7 or 8), then place the washers
(6) over the holes in the vertical brackets and insert the screws (13, 14, 15, or 16)
through the washers, vertical brackets, and spacers. Make sure that the brackets
are level.
3 Tighten the screws until they are snug against the vertical brackets. Do not over
tighten.
You’ll need
6 (Qty.4)
13 (Qty.4)
14 (Qty.4)
Phillips screwdriver
or
8 (Qty.4)
Level
1 Vertical
brackets
(Qty. 2)
or
or
15 (Qty.4)
16 (Qty.4)
7 (Qty.4)
or
RF-HTVMM170C_16-0577_MAN_V2_ENG_web.fm Page 8 Friday, August 5, 2016 11:18 AM
