RF-SBM102
Specifications
• Maximum soundbar weight: 20 lbs. (9.0 kg)
• Overall dimensions (H × W): 20.1 x 25 in. (51 cm x 63.5 cm)
• Soundbar mount weight: 2.9 lbs. (1.3 kg).
• For customer service, call: 1-800-620-2790
CAUTION: The weight of your TV, PLUS your soundbar mount, your soundbar, and any accessories, MUST BE LOWER than the
maximum weight rating of your TV mount. See your TV mount's manual for maximum weight allowed.
Before you begin
Make sure that:
• Your TV, soundbar, soundbar mount, and any accessories you plan to install DO NOT EXCEED the specified weight
limit of your TV wall mount.
• You refer to the documentation that came with your soundbar, your TV, and your TV wall mount for additional
guidance.
• You read and understand these directions.
• You have the tools needed for installation.

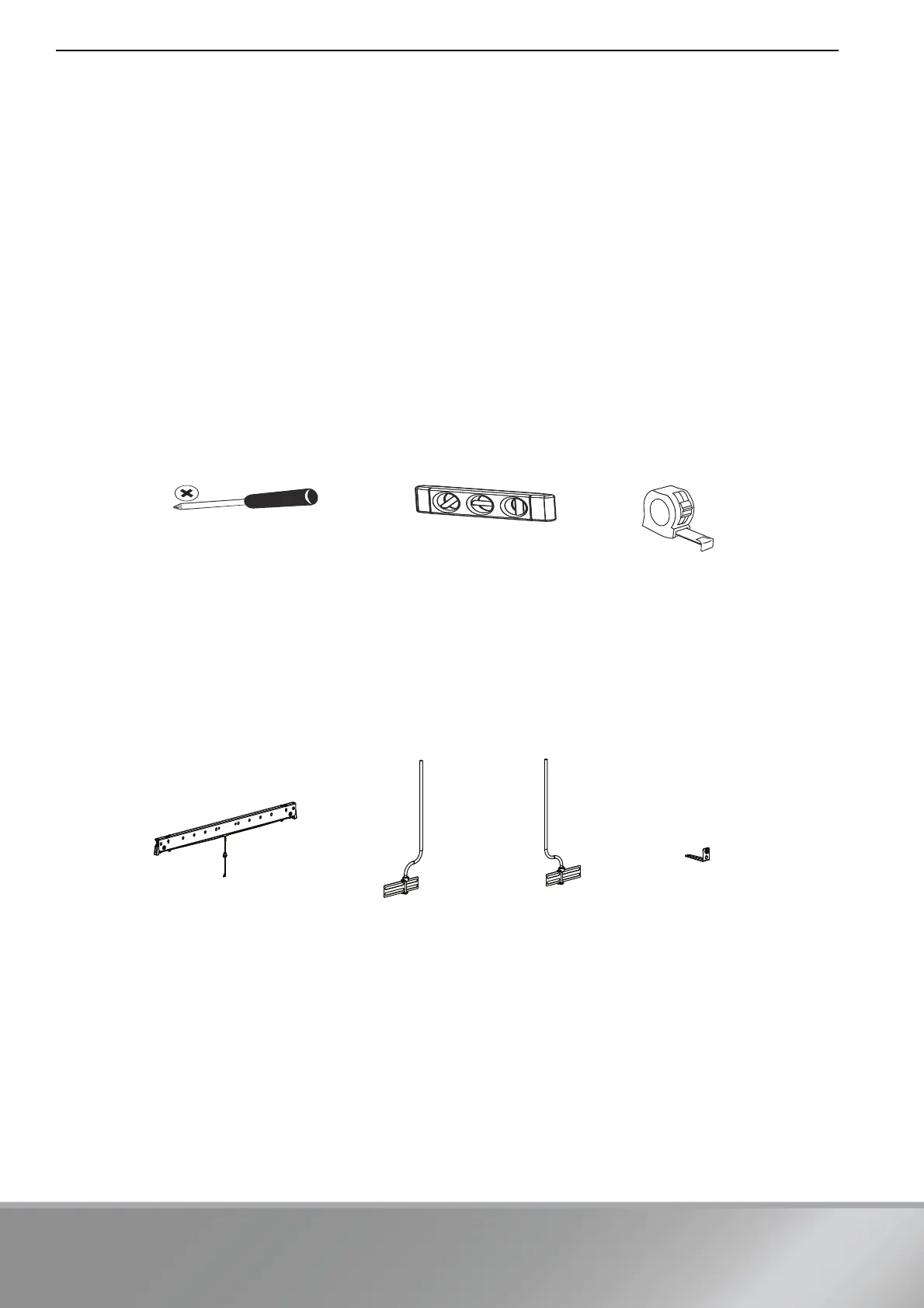

Tools needed
You need the following tools to assemble your new soundbar mount:
Your TV wall mount must be UL/TUV certified.
Note: Your TV wall mount may vary from the illustrations throughout this assembly guide, but the procedure to install the
soundbar is the same.
Package contents
Note: You won’t use all the included parts and hardware.
Make sure that you have all the hardware necessary to assemble your new soundbar wall mount:
Level
Phillips screwdriver
Tape measure
01 Horizontal bracket (1)
02 Arm bracket A (1) 03 Arm bracket B (1)
04 bottom
bracket (2)
