2 Measure the distance between the mounting holes on your soundbar.

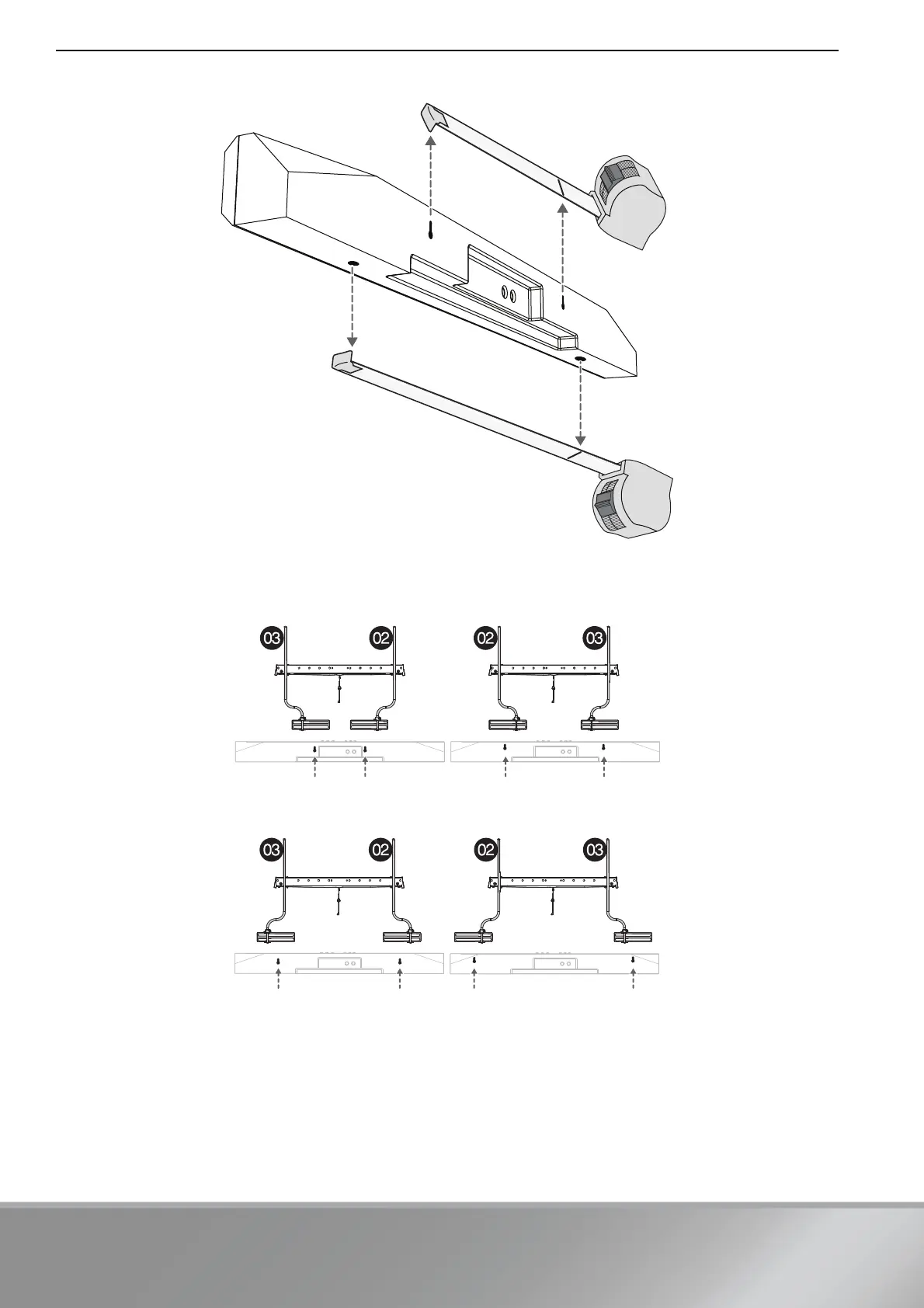

3 Based on your soundbar measurements, rotate the arm brackets (02 and 03) left or right to align with your soundbar
mounting holes. Make sure that the arms do not overhang the ends of your soundbar or cover up any cable
connections.
Back mounting holes
Bottom mounting holes
6.6 to 19.5"
(16.7 to 49.5 cm)
12 to 22.5"
(30.5 to 57.2 cm)
20 to 31"
(50.8 to 78.7 cm)
22.5 to 35.5"
(57.2 to 90.2 cm)
