RocketFish rf-tvmfm02 User Manual

7
Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Step 1 Install the TV bracket (continued)
Option 2: Installing for an obstructed mounting surface
Note: Use additional washers (H) with M4/M5 hardware only.

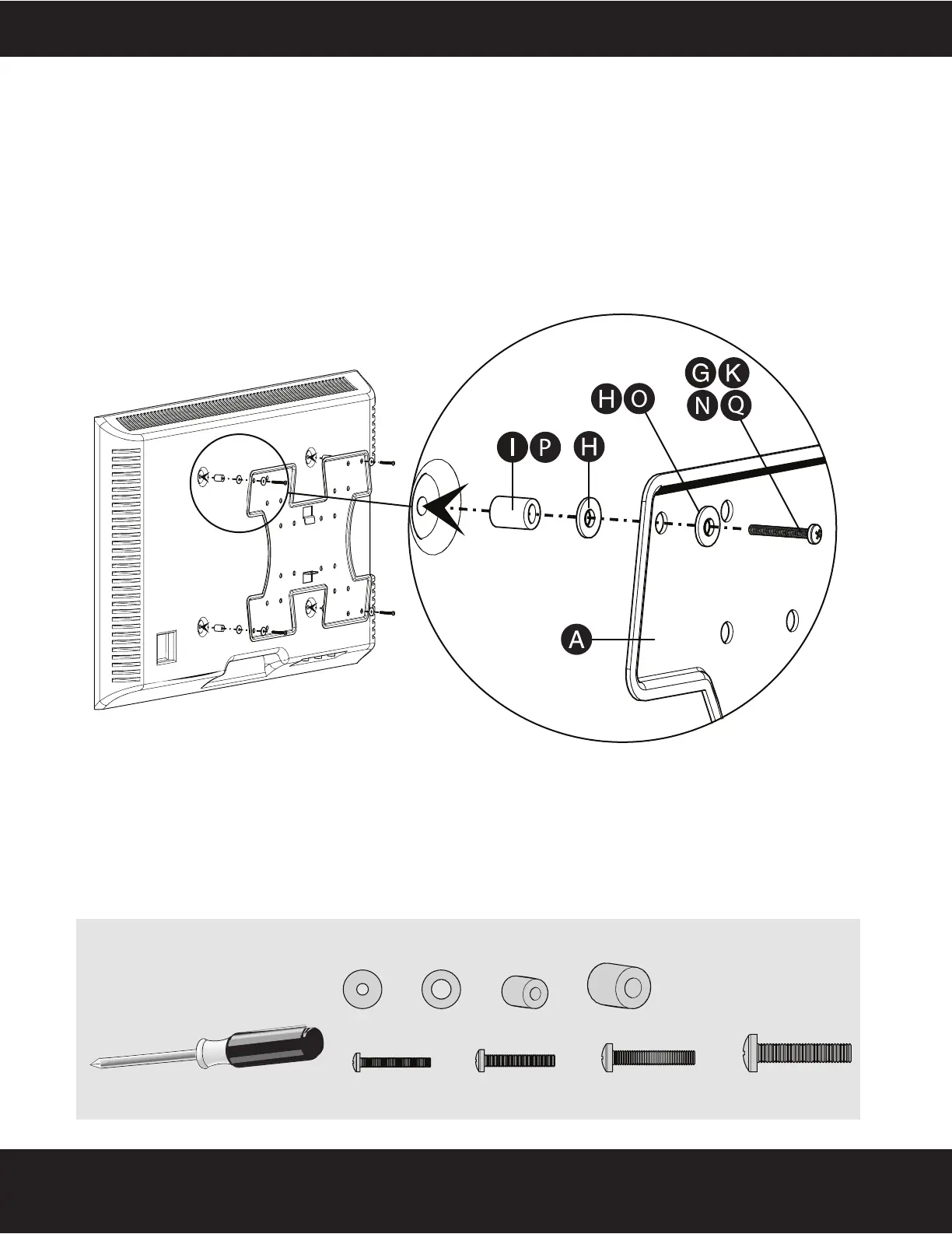

1 Align the TV bracket (A) with the screw holes on the back of the TV.
2 Place an M4/M5 spacer (I) or M6/M8 spacer (P) into each of the four recessed screw holes on the back of your
TV. If you are using M4 or M5 screws, place M4/M5 washers (H) over the spacers.
3 Place an M4/M5 washer (H) or M6/M8 washer (O) over each of the four screw holes in the TV bracket, then
insert an M4 screw (G), M5 screw (K), M6 screw (N) or M8 screw (Q) through each washer.
4 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
H (8) O (4)
G (4) K (4) N (4) Q (4)
Phillips screwdriver
OR
OR OR
OROR
I (4) P (4)
