RocketFish rf-tvmfm02 User Manual

8
Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount

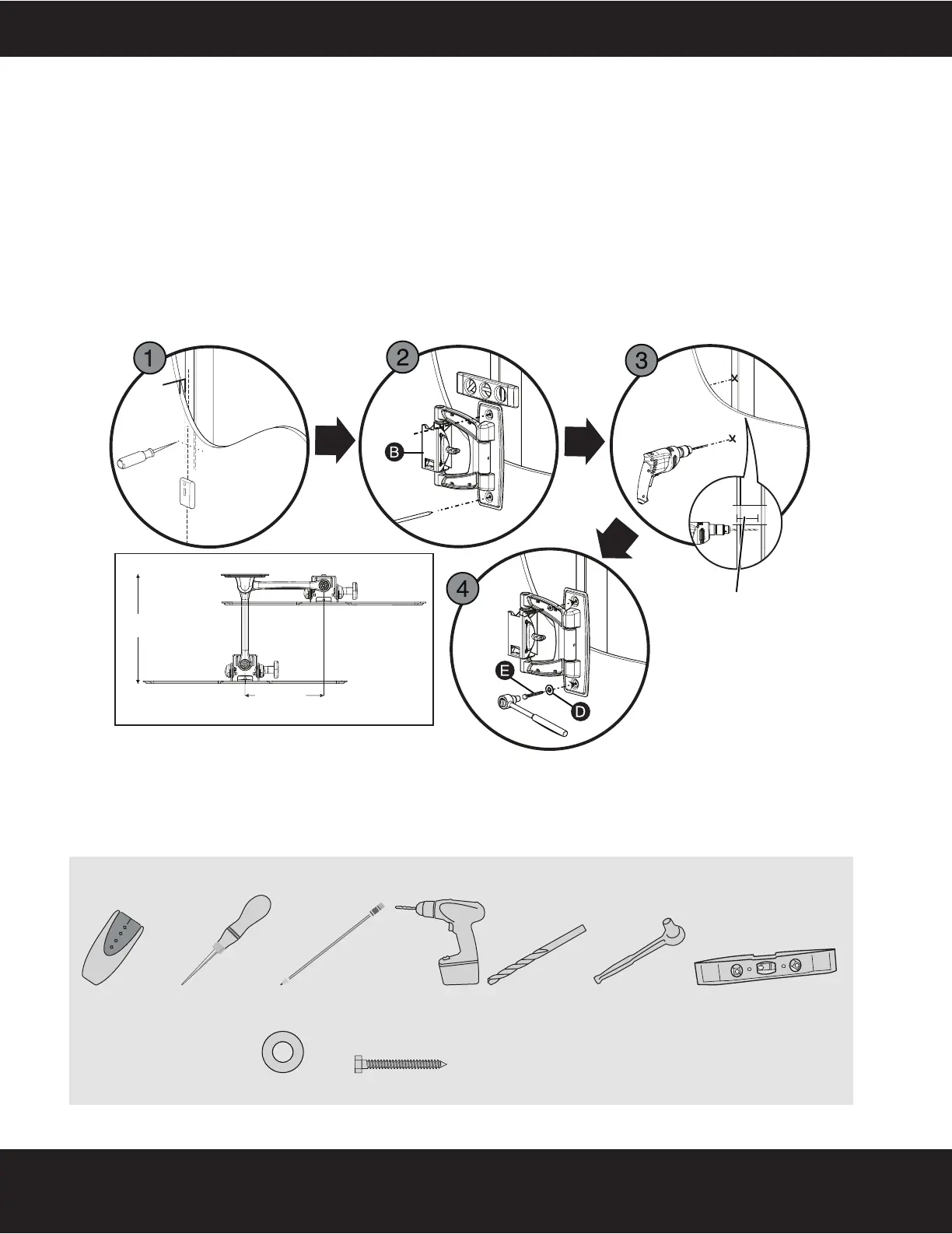

Step 2 Install the arm assembly
Note: Any material covering the wall must not exceed 5/8 in. (16 mm).
Option 1: Installing on a wood stud wall
1 Locate the stud. Verify the center of the stud with an awl or use an edge-to-edge stud finder.
2 Level the arm assembly (B) and mark the two hole locations. Drill pilot holes to a depth of 3" (75 mm) using a
7/32" (5.5 mm) diameter wood drill bit.
3 Align the arm assembly (B) with the pilot holes.
4 Place a lag bolt washer (D) over each screw hole in the arm assembly, insert a lag bolt (E) through each
washer, then tighten the lag bolts only until the washers are pulled firmly against the arm assembly.
Warning: Avoid potential injuries or property damage. DO NOT over-tighten the lag bolts (E).
You’ll need
7 in.
9
7
/
10
in.
Wall
TV
7" (177.8 mm)
9-7/10"
(246.38 mm)
<5/8"
16 mm
3" (75 mm)
Stud
finder
Awl Pencil Drill Socket wrench
with 1/2" (13 mm)
socket or
adjustable wrench
D (2)
E (2)
Level
OR
7/32"
(5.5 mm)
wood drill
bit
