Connecting the sender to the AC power adapter
Caution: To avoid risk of fire, and to prevent damage, only use the AC adapter
supplied with your universal wireless rear speaker kit.
Connecting the receiver
Connecting the receiver to your surround speakers
To connect the surround speakers to the receiver:
1 Connect the right speaker to the right speaker terminals of the receiver,
and the left speaker to the left speaker terminals.
2 If the speakers have wires instead of terminals, connect the positive (+)
wire from the right speaker to the Red (+) terminal for the right speaker
on the receiver and the negative (-) wire from the right speaker to the
Black (-) terminal for the right speaker on the receiver.
3 Connect the left speaker the same way.

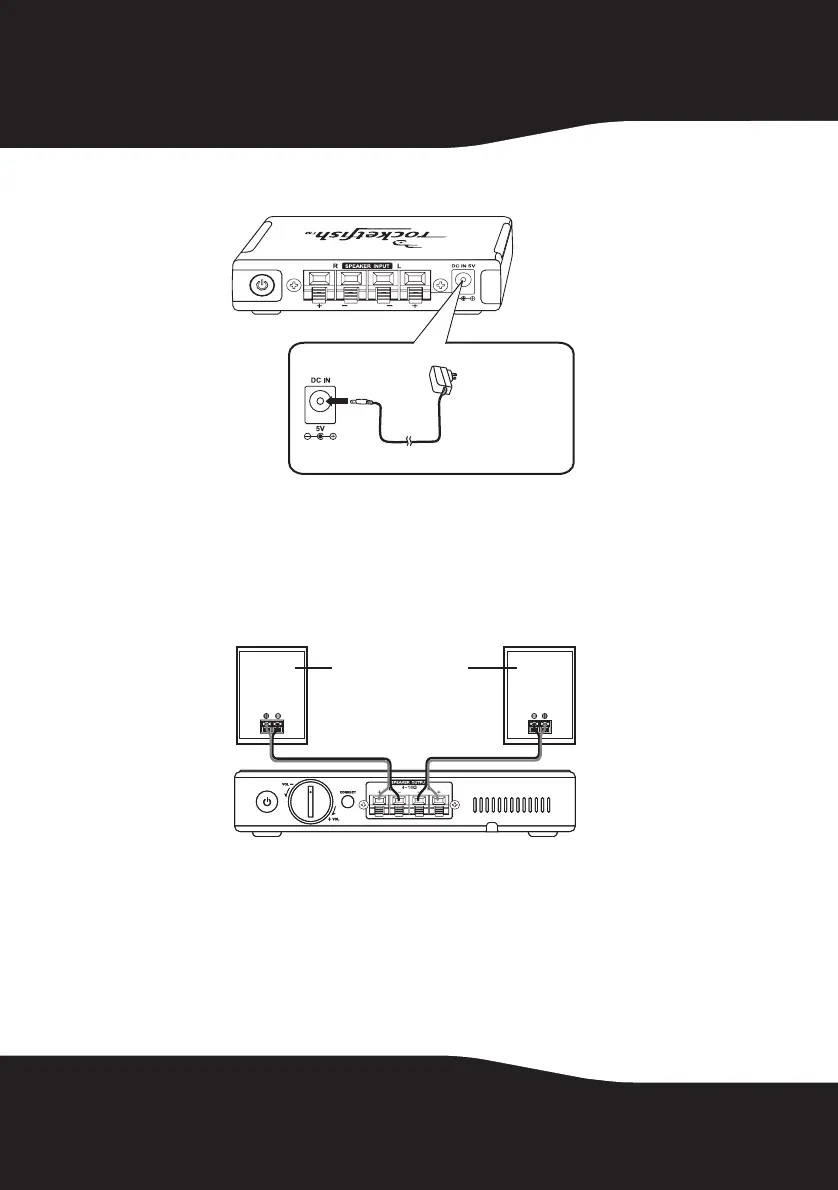

Sender back panel
Plug the AC
power adapter
in only after
your amplifier is
connected to
the sender.
Left
surround
speaker
Right
surround
speaker
