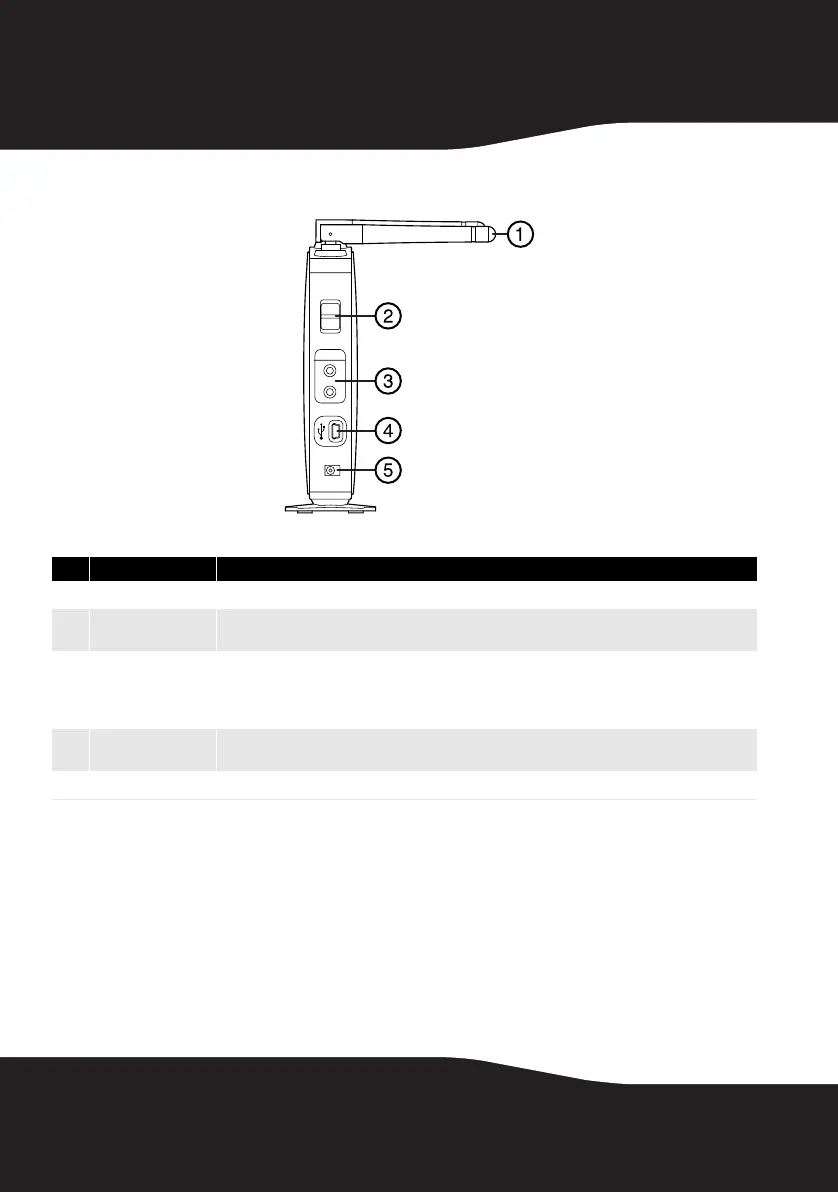

Wireless sender/receiver (back panel)
# Feature Description
1
External antenna Receives audio from wireless senders. Sends audio to receivers.
2
HUB STATUS switch Enables and disables hub mode operation. See “Establishing communication” on page 19 for
more information.
3
LINE IN/OUT jacks When used as a wireless sender, plug an audio source device into the LINE IN jack.
When used as a wireless receiver, plug your amplifier or amplified speakers into the LINE OUT
jack. Note, this device operates as both a wireless sender and wireless receiver, so you can use it
simultaneously to send and receive audio on your Rocketboost network.
4
USB jack When used as a wireless sender, connect to the USB jack of your computer to send the audio from
your computer to the Rocketboost wireless receivers.
5
DC IN jack Plug the AC power adapter into this jack.
