Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 101
Chapter 5 LCD and Keypad
Configure the IP Address
The IP Address screen of the LCD displays Ethernet network configuration
assigned to the controller.
Follow these steps to edit the Ethernet network configuration for your
controller.

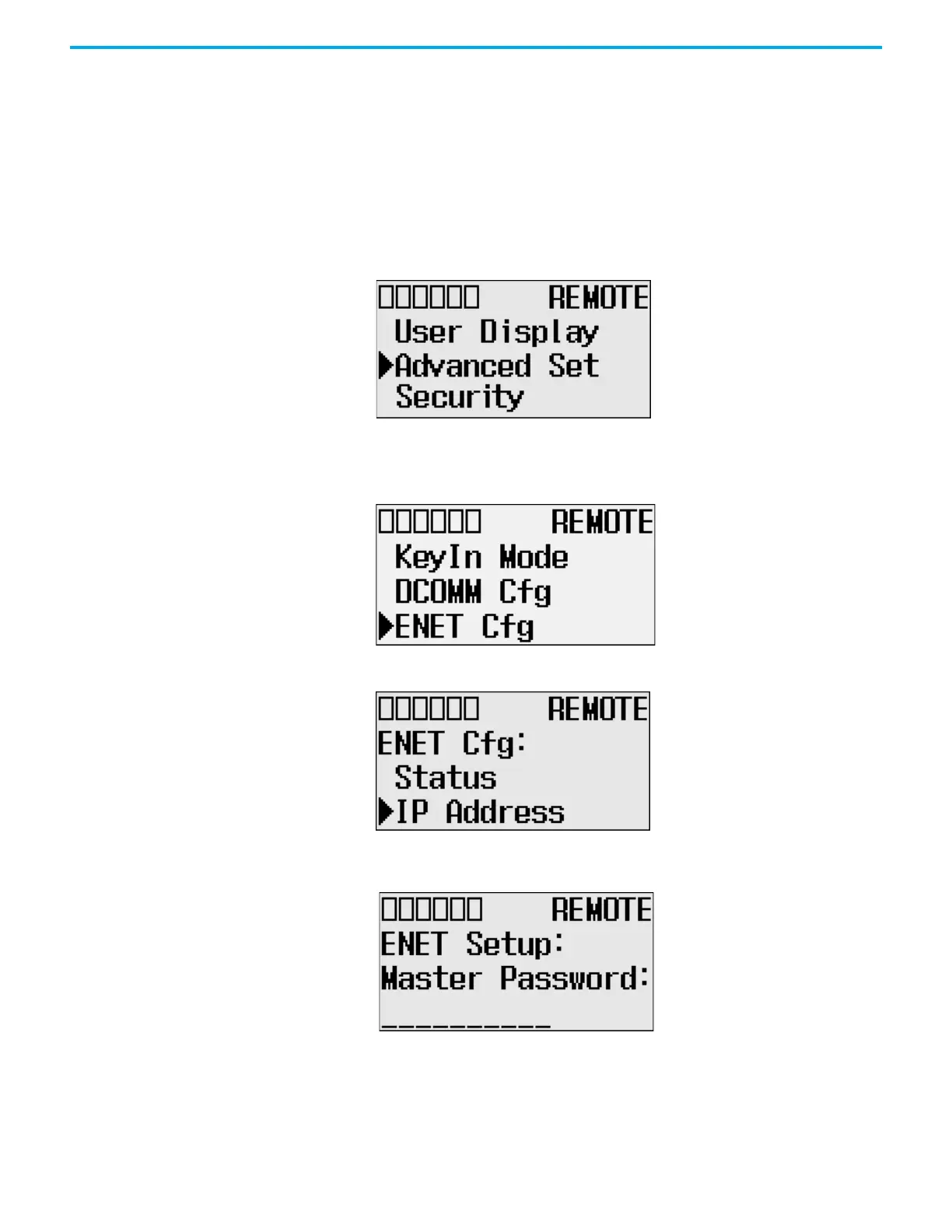

1. On the Main Menu screen, select Advanced Set by using the Up and
Down keys on the LCD keypad, as shown. If the menu items do not
display on the Main Menu screen as shown, scroll down the screen by
pressing the Down key.
Note: The Security menu is available in firmware revision 21.000 or later.
2. Press OK on the LCD keypad. The Advanced Settings Menu screen
displays, as shown. If ENET Cfg is selected, press OK. Otherwise, select
ENET Cfg using the Up and Down keys, and then press OK.
3. If IP Address is selected, press OK, If not, select IP Address using the Up
and Down keys, and then press OK.
4. The password screen displays. Press Up, Down, Left and Right keys to
enter the master password up to a maximum of 10 digits. In this
example, the current master password is allocated as 1234.
