Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 29
Chapter 2 Install Your Controller

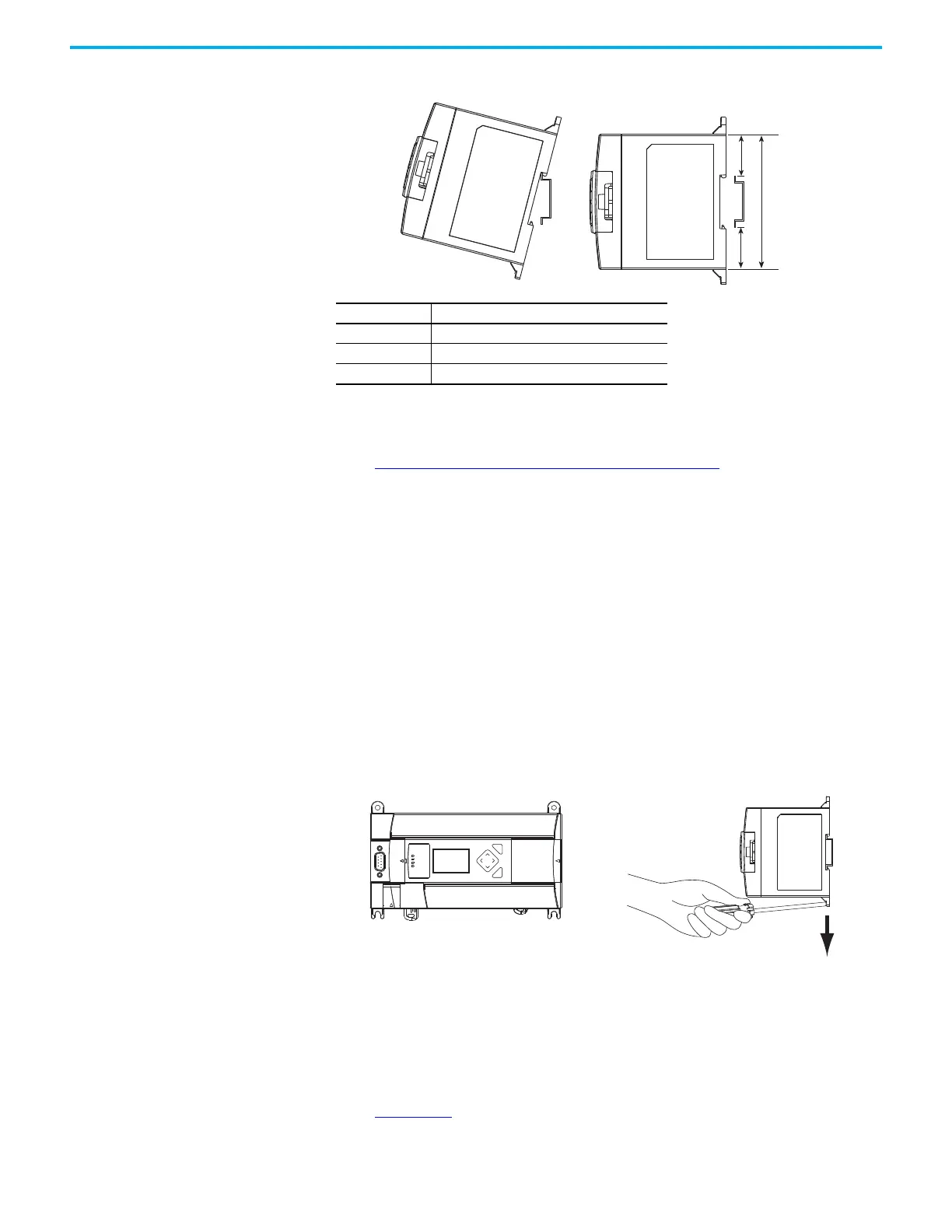

Mount on DIN Rail
To install your controller on the DIN rail, do as follows:
1. Mount your DIN rail. (Make sure that the placement of the controller on
the DIN rail meets the recommended spacing requirements, see
Controller and Expansion I/O Spacing
on page 27. See the mounting
template inside the back cover of this document.)
2. Close the DIN latch, if it is open.
3. Hook the top slot over the DIN rail.
4. While pressing the controller down against the top of the rail, snap the
bottom of the controller into position.
5. Leave the protective debris shield attached until you are finished wiring
the controller and any other devices.
To remove your controller from the DIN rail:
1. Place a flat-blade screwdriver in the DIN rail latch at the bottom of the
controller.
2. Holding the controller, pry downward on the latch until the latch locks in
the open position.
3. Repeat steps 1 and 2 for the second DIN rail latch.
4. Unhook the top of the DIN rail slot from the rail.
Panel Mounting
Mount to panel using #8 or M4 screws. To install your controller using
mounting screws:
1. Remove the mounting template from inside the back cover of MicroLogix
1400 Programmable Controllers Installation Instructions, publication
1766-IN001
.
Dimension Height
A 90 mm (3.5 in.)
B 27.5 mm (1.08 in.)
C 27.5 mm (1.08 in.)
A
B
C
ESC
OK
open closed
