Appendix F MicroLogix 1400 Distributed Network Protocol

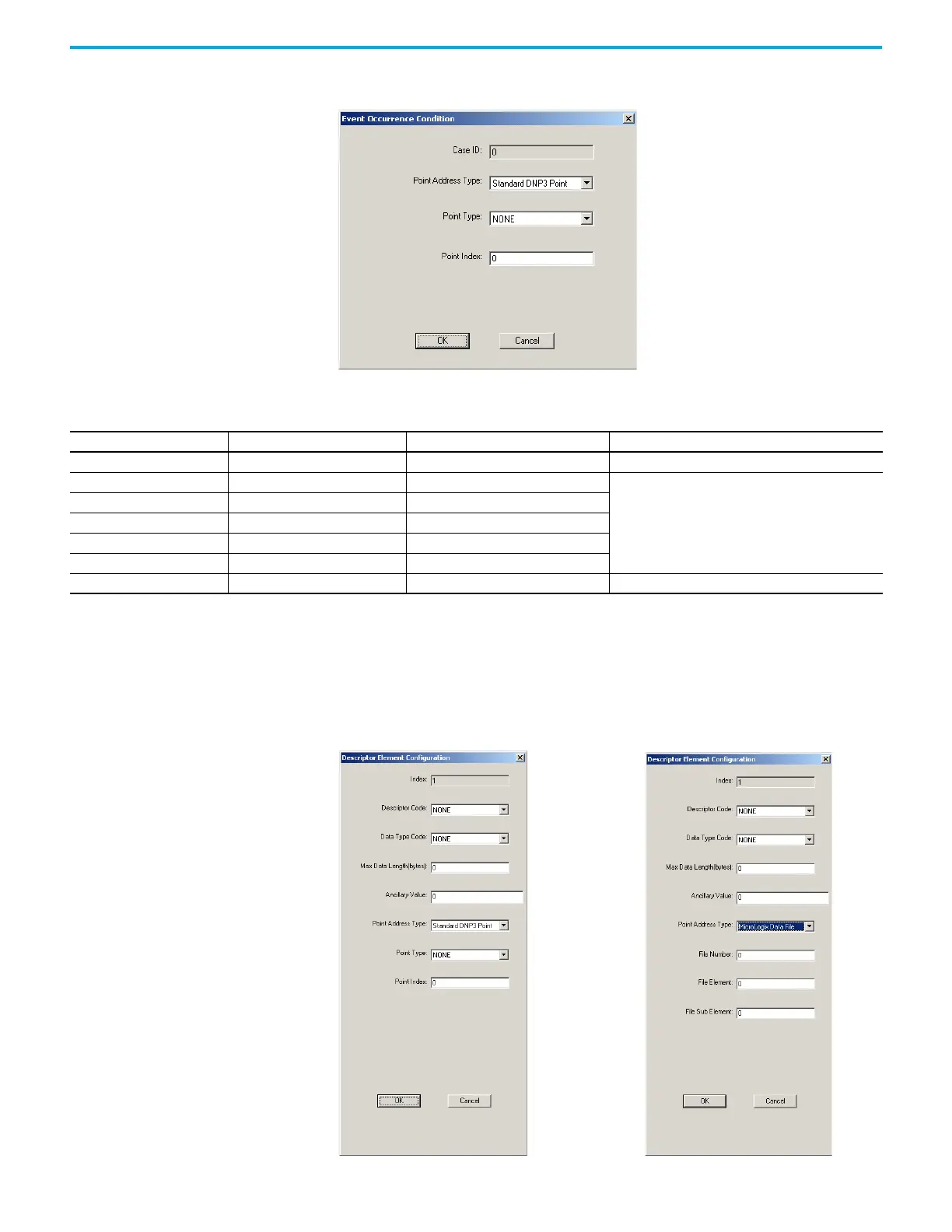

This table shows the supported conditions for Point Addressing. Double-click
each case element to edit it.
Point Addressing under Event Occurrence Conditions: Valid selections are
shown below.
Note that a Data-Set event can consume any number of event buffers,
depending on the Data-Set configuration. This is only applicable for Data-Set
events. The event for other objects consumes a single event buffer. When using
Data-Set events, increase the number of events in the DNP3 Slave
configuration.
Descriptor Element Configuration: Each Descriptors element is configured in
this here. Double-click each element to edit it.
Point Address Type Point Type Point Index Event Occurrence Condition
Standard DNP3 Point NONE: No point type is associated. 0 No Event is generated.
BI: Binary input 0…4095
When the Point Type and Point Index are pointing a specific
point, if the value of the point is changed, an event is
generated.
B2I: Double-bit input 0…2047
CI: Counter 0…511
AI: Analog input 0…767
BCD: BCD point 0…255
Reserved for others. Reserved for others. No Event is generated.
