Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 229
Appendix F MicroLogix 1400 Distributed Network Protocol

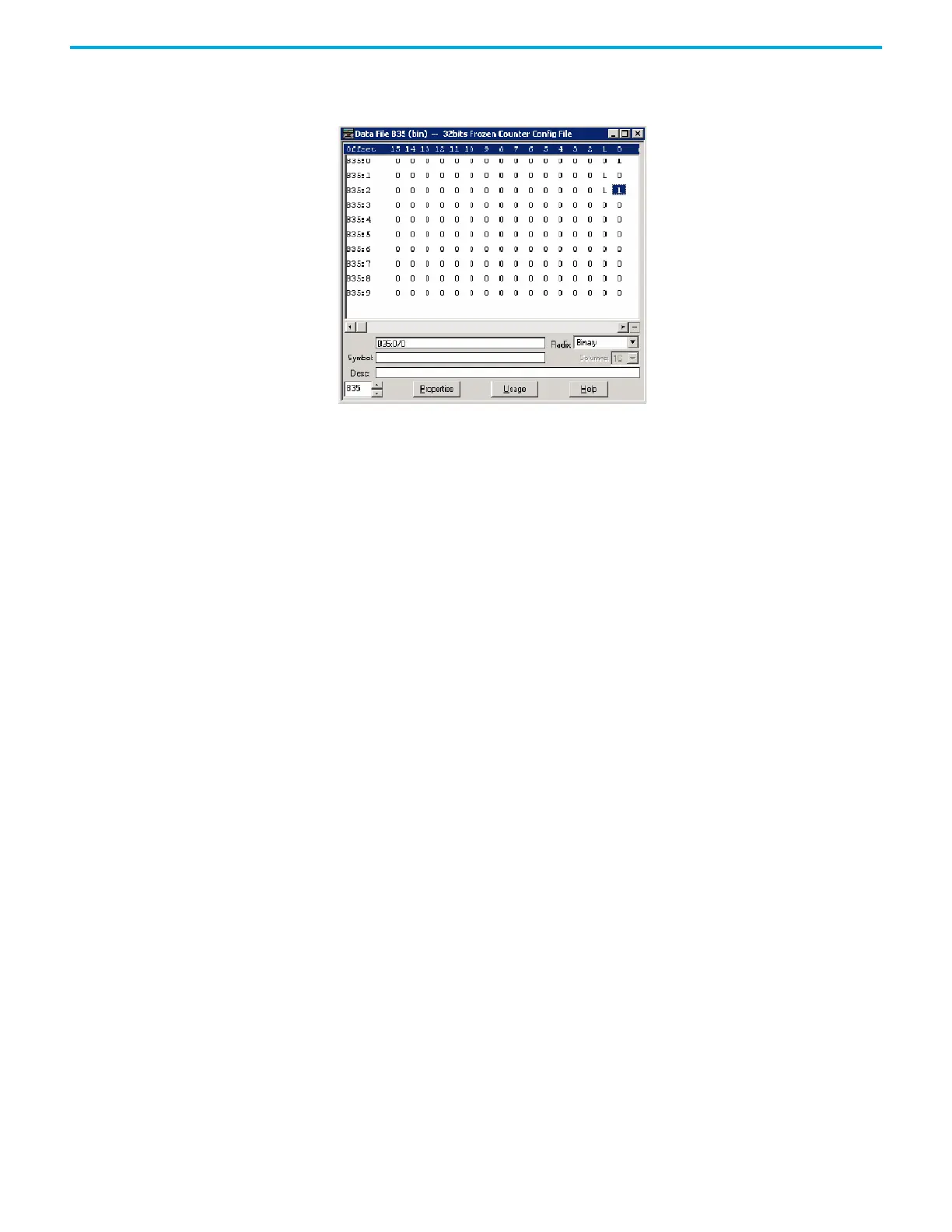

For 32-bit Frozen Counter Config File, Class Level of Index 10 is 1(B35:0/0 and
B35:0/1), Class Level of Index 11 is 2(B35:1/0 and B35:1/1), Class Level of Index 12
is 3(B35:2/0 and B35:2/1), and Class Level of other Indexes are 0.
DNP3 Analog Input Object
The supported object group and variations are listed in this section. The
controller responds with the default group and variation when the DNP3
Master requests to read the object with Any variation.
Analog Input Static Objects:
• g30v0 – Analog Input – Any Variations
• g30v1 – Analog Input – 32-bit with flag
• g30v2 – Analog Input – 16-bit with flag
• g30v3 – Analog Input – 32-bit without flag (default)
• g30v4 – Analog Input – 16-bit without flag (default)
• g30v5 – Analog Input – Single-prec flt-pt with flag (default)
Analog Input Event Objects:
• g32v0 – Analog Input Event – Any Variation
• g32v1 – Analog Input Event – 32-bit without time (default)
• g32v2 – Analog Input Event – 16-bit without time (default)
• g32v3 – Analog Input Event – 32-bit with time
• g32v4 – Analog Input Event – 16-bit with time
• g32v5 – Analog Input Event – Single-prec flt-pt without time (default)
• g32v7 – Analog Input Event – Single-prec flt-pt with time
Related Object File Number:
• 16-bit Analog Input Object File Number
• 32-bit Analog Input Object File Number
• Short Floating Point Analog Input Object File Number
Related Configuration File Number:
• 16-bit Analog Input Config File Number
• 32-bit Analog Input Config File Number
• Short Floating Point Analog Input Config File Number
