Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 83
Chapter 5 LCD and Keypad
Monitor a Bit File

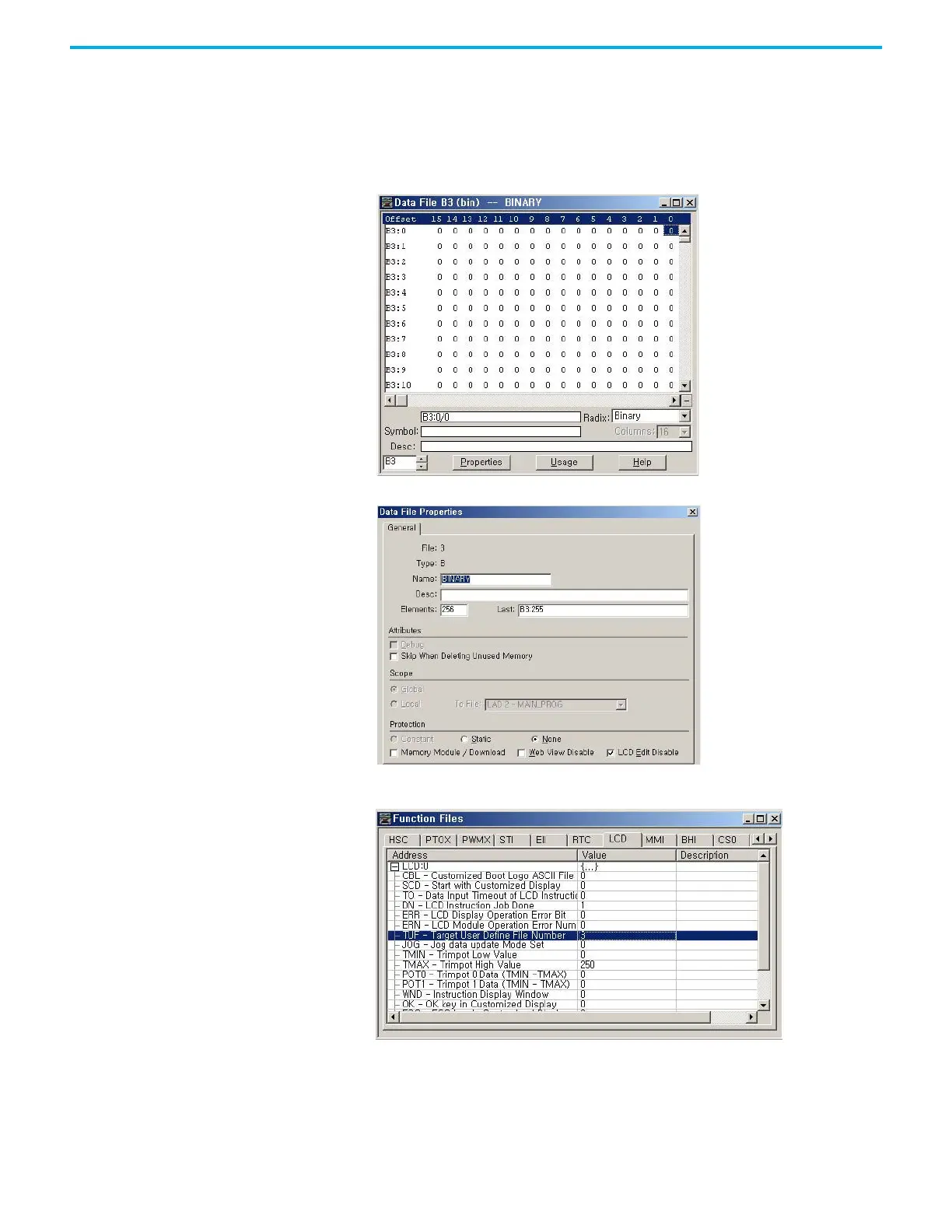

For explanations in this section, we assume the following in the application
program:
• A bit file B3, which is 256 elements long (256 words = 4096 bits), is defined
with the preset data, as shown.
• LCD Edit Disable is set to unchecked (disable)
• The TUF element of the LCD Function File is set to 3 to specify the bit file
B3 as the target bit file to monitor on the LCD, as shown.
• The controller mode is set to REMOTE RUN.
