12 Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021
Chapter 1 Overview

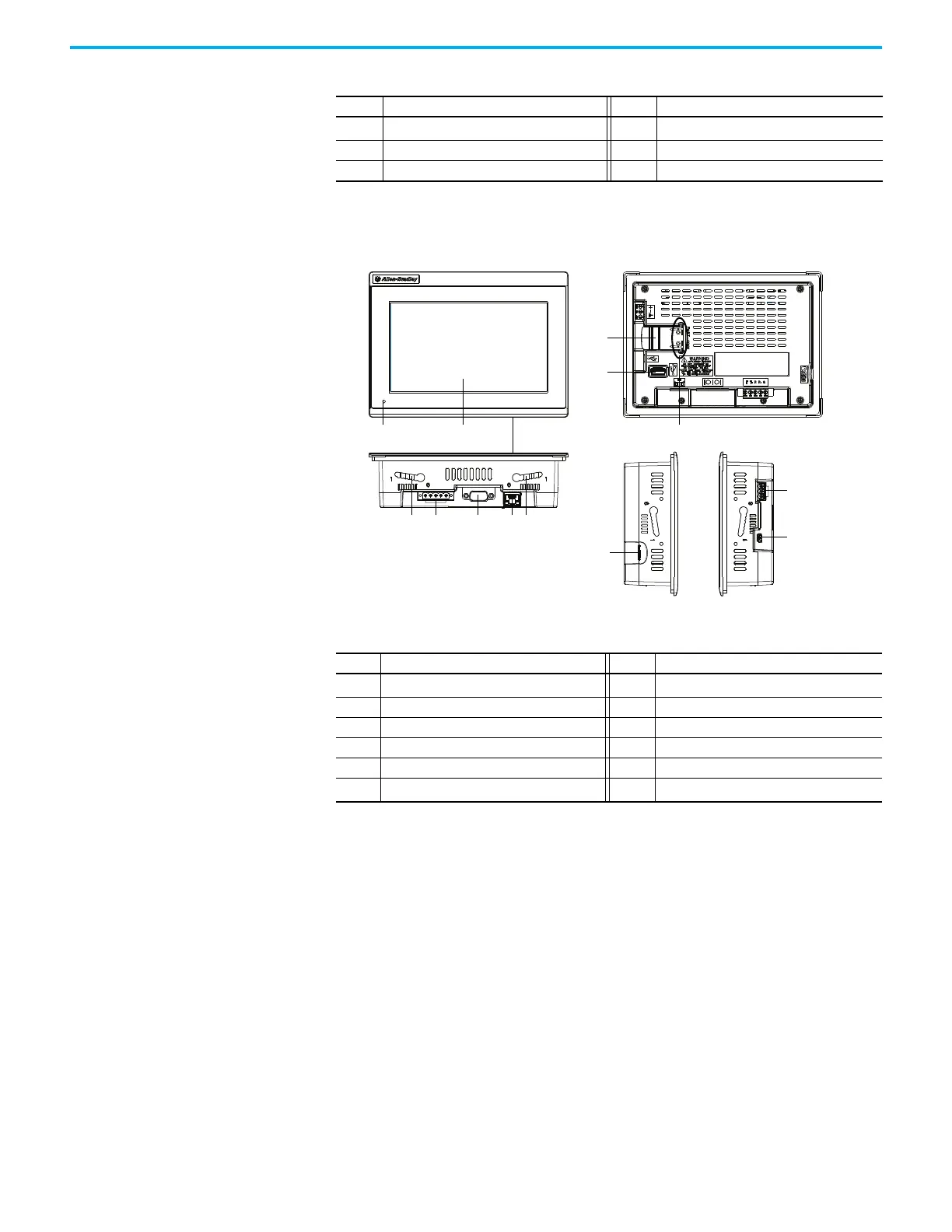

PanelView 800 Terminals – 2711R-T7T
4
USB device port
(2)
10 USB host port
5 microSD™ (Secure Digital) card slot 11 Diagnostic status indicator
6 Mounting slots 12 Replaceable real-time clock battery
(1) The Power Status LED is red when in screen saver or dimmer mode and green when in normal (operational) mode.
(2) The USB device port is not intended for Customer use.
PanelView 800 Terminals 2711R-T7T Description
Item Description Item Description
1
Power status LED
(1)
(1) The Power Status LED is red when in screen saver or dimmer mode and green when in normal (operational) mode.
7 Replaceable real-time clock battery
2 Touch display 8 USB host port
3 Mounting slots 9 Diagnostic status indicator
4 RS-422 and RS-485 port 10 microSD (Secure Digital) card slot
5 RS-232 port 11 24V DC power input
6 10/100 Mb Ethernet port 12
USB device port
(2)
(2) The USB device port is not intended for Customer use.
PanelView terminal 2711R-T4T Description (Continued)
Item Description Item Description
