Chapter 3 DesignStation in Connected Components Workbench Software

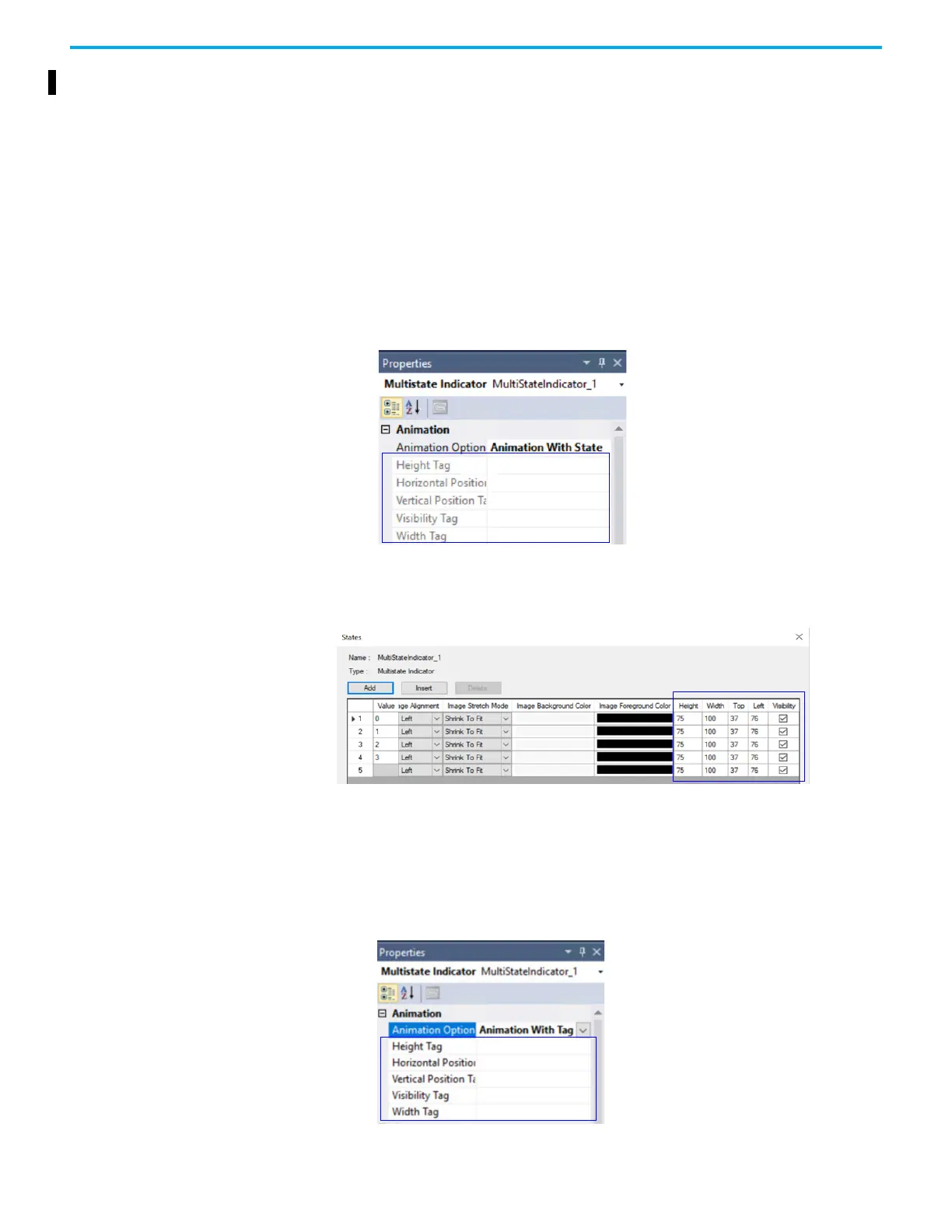

Animation Connected Components Workbench software version 13 or later adds a new
property Animation Option to Multistate Indicator objects with the following
options:
• Animation With State
• Animation With Tag
If Animation With State is selected, the following tags are not configurable:
• Height Tag
• Horizontal Position Tag
• Vertical Position Tag
• Visibility Tag
•Width Tag
Double-click the Multistate Indicator to display the States Dialog box.
From the States screen, scroll to the right to configure the last five properties,
if necessary.
If Animation With Tag is selected, the following tags are configurable:
• Height Tag
• Horizontal Position Tag
• Vertical Position Tag
• Visibility Tag
•Width Tag
