62 Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021
Chapter 3 DesignStation in Connected Components Workbench Software

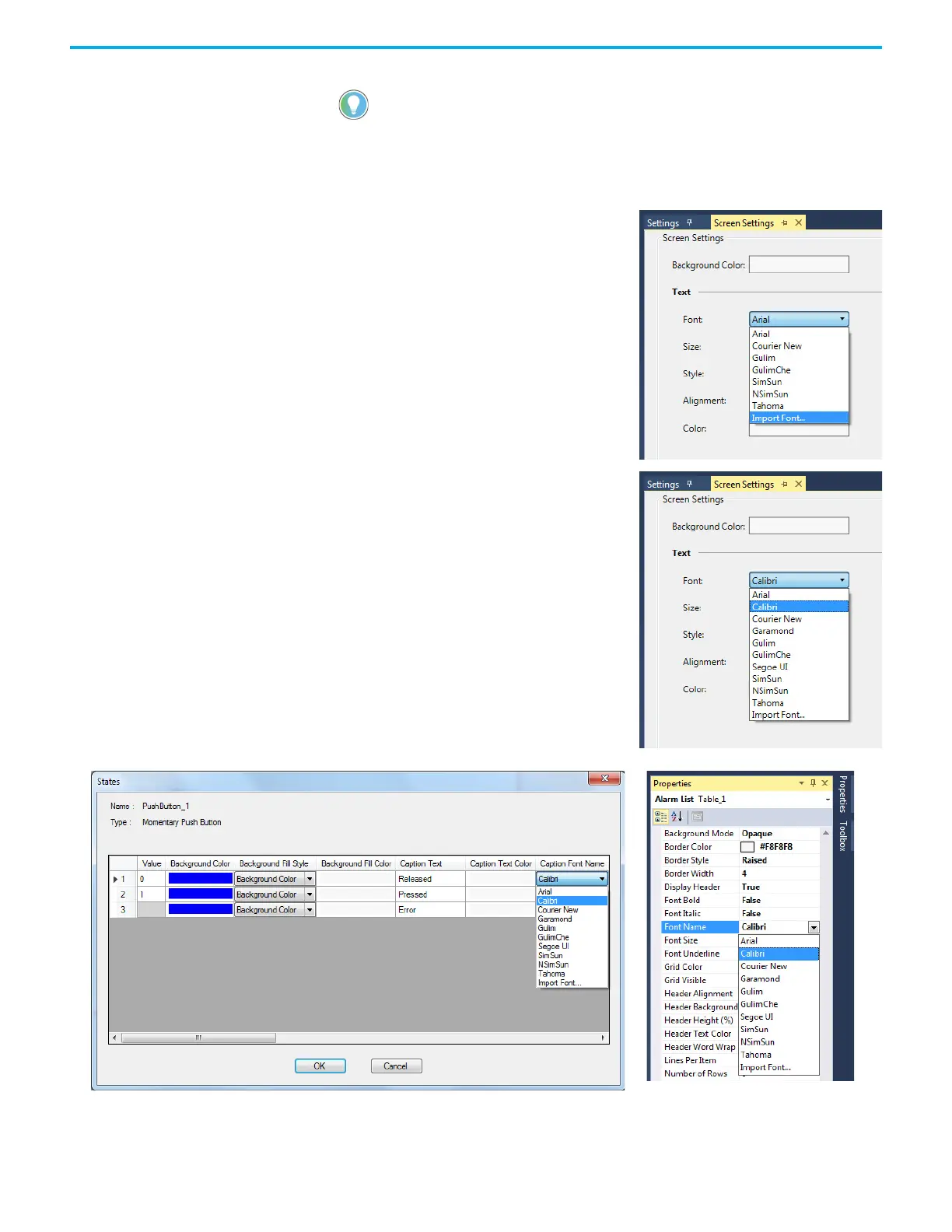

Follow these steps to change the application font.
1. In Connected Components Workbench software, double-click Screens in
your application to open the Screen Settings tab.
2. Select the font to use from the
Font drop-down list. To import a
font, select Import Font.
3. Browse your computer for the
font, then select it and click
Open.
The font is now imported into
your application.
4. To change the font for an
individual object, select the font
from the object properties. Here
are some examples.
If your application uses a font that is not in the terminal, the font will be download
to the terminal together with your application.
