Rockwell Automation Publication 20P-TD001K-EN-P - January 2021 31
PowerFlex DC Drive and Field Controller Technical Data

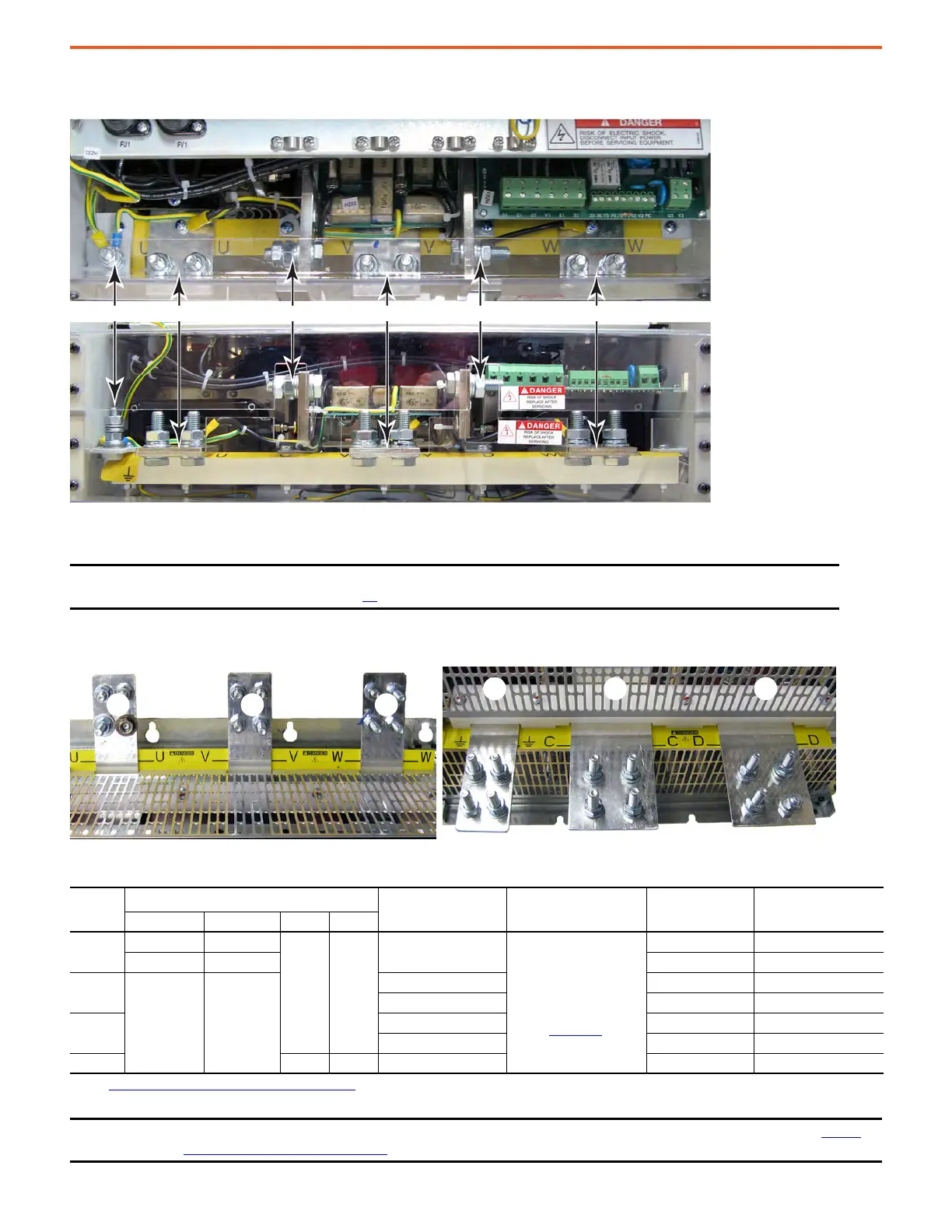

Frame C Armature Terminal Block Locations
Frame D Armature Terminal Block Locations
Armature Power Terminal and Ground (PE) Wire Sizes
Frame
Drive Current Rating Code
(1)
(1) See PowerFlex DC Drive Catalog Number Explanation on page 6, positions 8, 9 and 10 for corresponding drive Hp rating, armature Amp rating, and field Amp rating.
Terminals Wire Size and Type
Terminal Bolt Size
(mm)
Final Torque
N•m (lb•in)
230V 460V 575V 690V
A
7P0…055 4P1…052
——
U, V, W, C, D, PE
See Cable and Wiring
Recommendations in the
PowerFlex Digital DC Drive
User Manual, publication
20P-UM001
.
56 (53)
073…110 073…129 Terminal Block 12 (106)
B
All All
U, V, W, C, D 10 25 (221)
PE 8 15 (132.75)
C
U, V, W, C, D 10 25 (221)
PE 8 15 (132.75)
D All All U, V, W, C, D, PE 12 45 (398.2)
IMPORTANT Certain frame D drives require the use of a terminal adapter kit for terminals U, V, W, C, and D. For details, see Frame
D Terminal Adapter Kits on page 20.
Bottom View
Front View
PE U C V D W
Top of Drive Bottom of Drive
IMPORTANT Certain frame D drives require the use of a terminal adapter kits for terminals U, V, W, C and D. See Frame D
Terminal Adapter Kits on page 20
for details.
PE
U
C
V
D
W
