Rockwell Automation Publication 20P-TD001K-EN-P - January 2021 35
PowerFlex DC Drive and Field Controller Technical Data

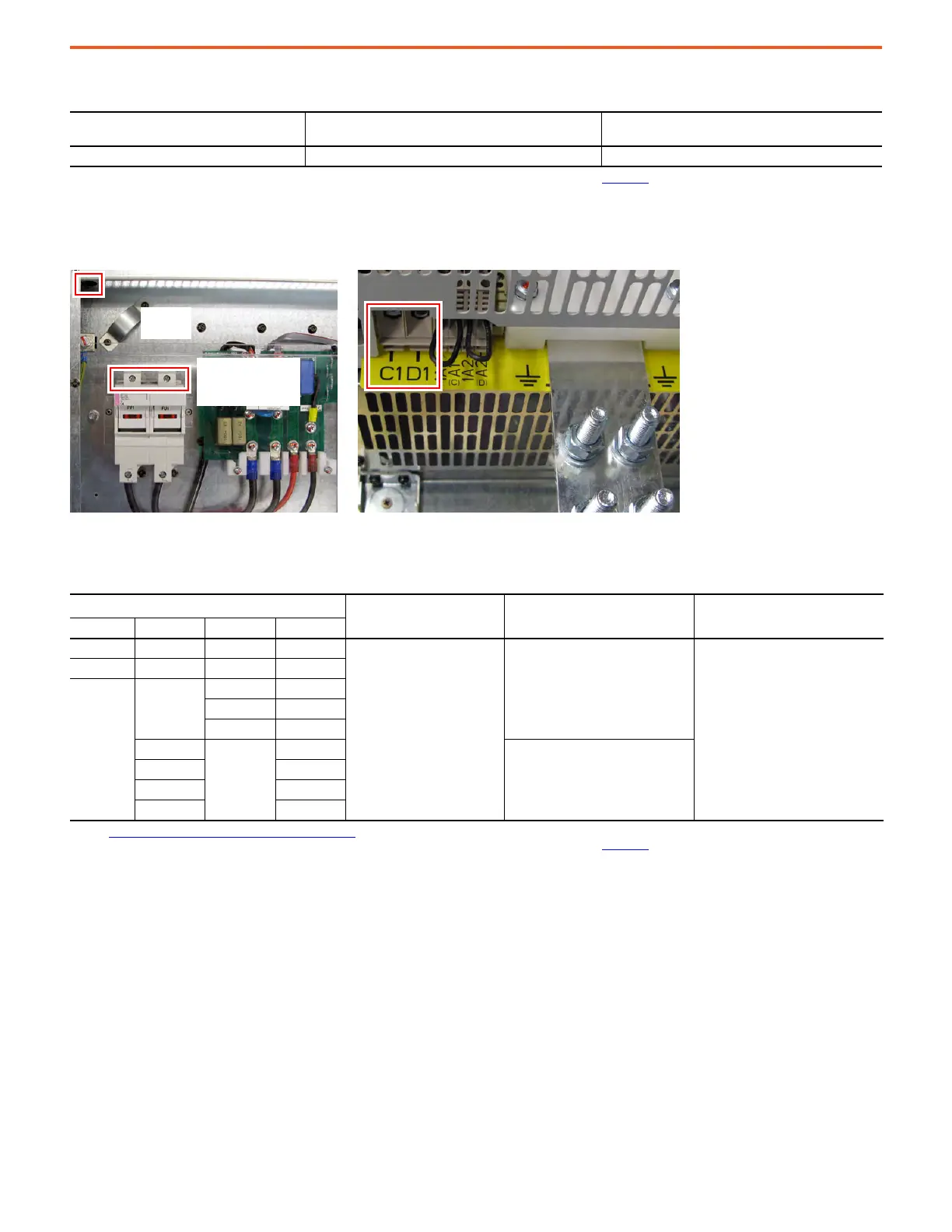

Frame D Field Circuit Terminal Block Location
Frames A…C Field Circuit Wire Sizes and Terminal Specifications
Terminals
Wire Size and Type
(1)
(1) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001.
Tightening Torque
N•m (lb•in)
U1, V1, C1, D1 24…10 AWG/kcmils 0.5…0.8 (4.4…7.1)
Frame D Field Circuit Wire Sizes and Terminal Specifications
Drive Current Rating Code
(1)
(1) See PowerFlex DC Drive Catalog Number Explanation on page 6, positions 8, 9 and 10 for corresponding drive Hp rating, armature Amp rating, and field Amp rating.
Terminals
Wire Size
(2)
(2) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001.
Tightening Torque
N•m (lb•in)
230V 460V 575V 690V
875 830 810 678
U1, V1, C1, D1
6 AWG
4.0 (35.4)
1K0 996 1K0 791
—
—
1K2 904
1K3 1K0
1K6 —
1K1
—
1K1
2 AWG
1K3 1K2
1K4 1K4
—1K5
Bottom of Drive, Left SideTop of Drive, Left Side
Shown with control cover removed.
Remove control cover to access terminals.
Wire routing hole
Cable
clamp
AC input for field is at
top of fuse holder
(marked FU1, FV1)
