Rockwell Automation Publication 20P-TD001K-EN-P - January 2021 37
PowerFlex DC Drive and Field Controller Technical Data

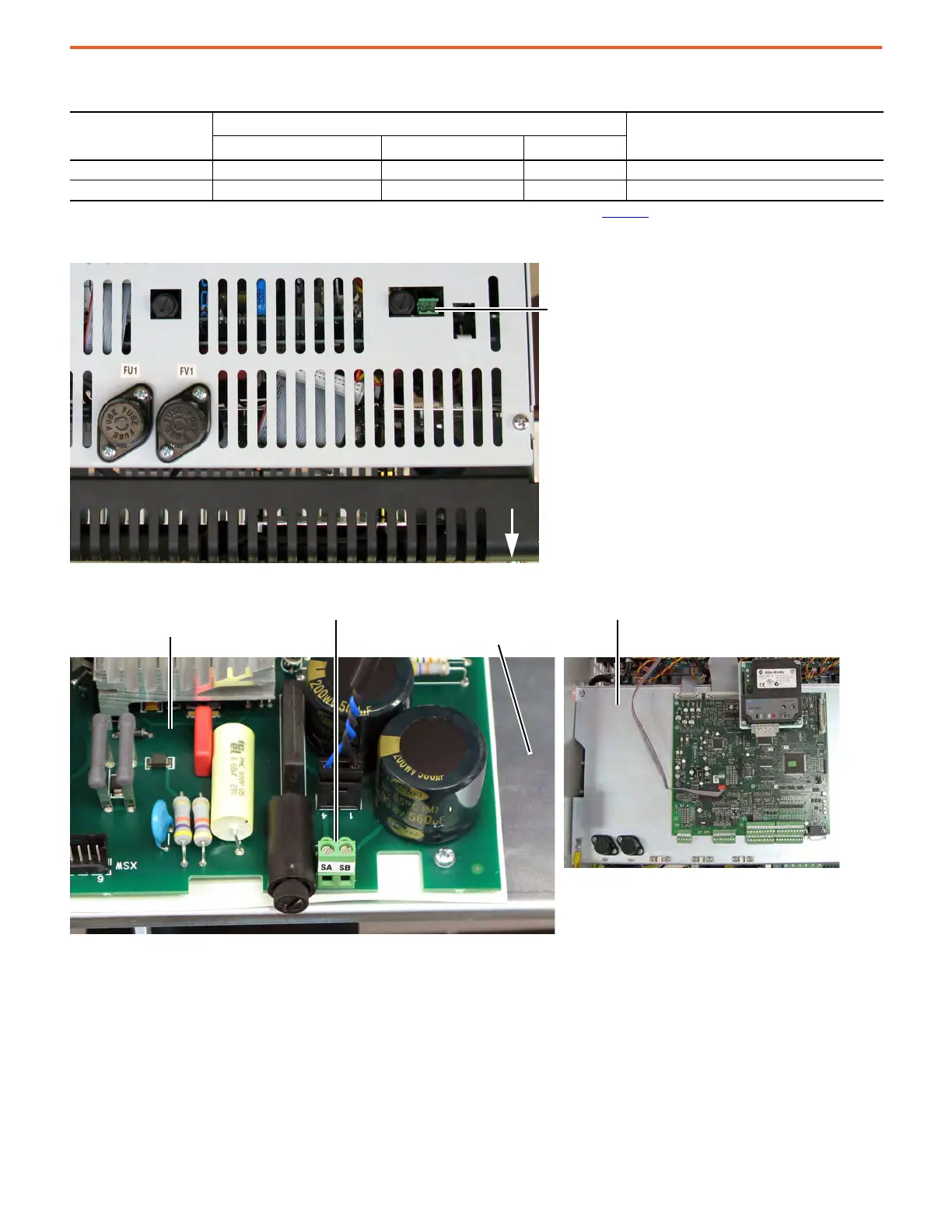

Frame B SA-SB Terminal Block Location (on all PowerFlex DC Drives and Field Controllers)
Frame C SA-SB Terminal Block Location (only on PowerFlex DC Drives)
Control Circuit Wire Sizes
Terminals
Wire Size and Type
(1)
(1) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001.
Tightening Torque
N•m (lb•in)
Flexible (mm
2
)Multicore (mm
2
)
AWG
U2, V2 0.14…1.5 0.14…2.5 26…14 0.5 (4.4)
PE 2.5…10 2.5…10 12…8 2.0 (18.0)
Top of
drive
SA-SB terminals
Front of
drive
Switching Power Supply Board (on
the back of the Control EMI shield)
SA-SB terminals
Control EMI Shield
(Shown in the open position)
Front of drive that is shown with top protective cover removed.
Control EMI shield
