54 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data

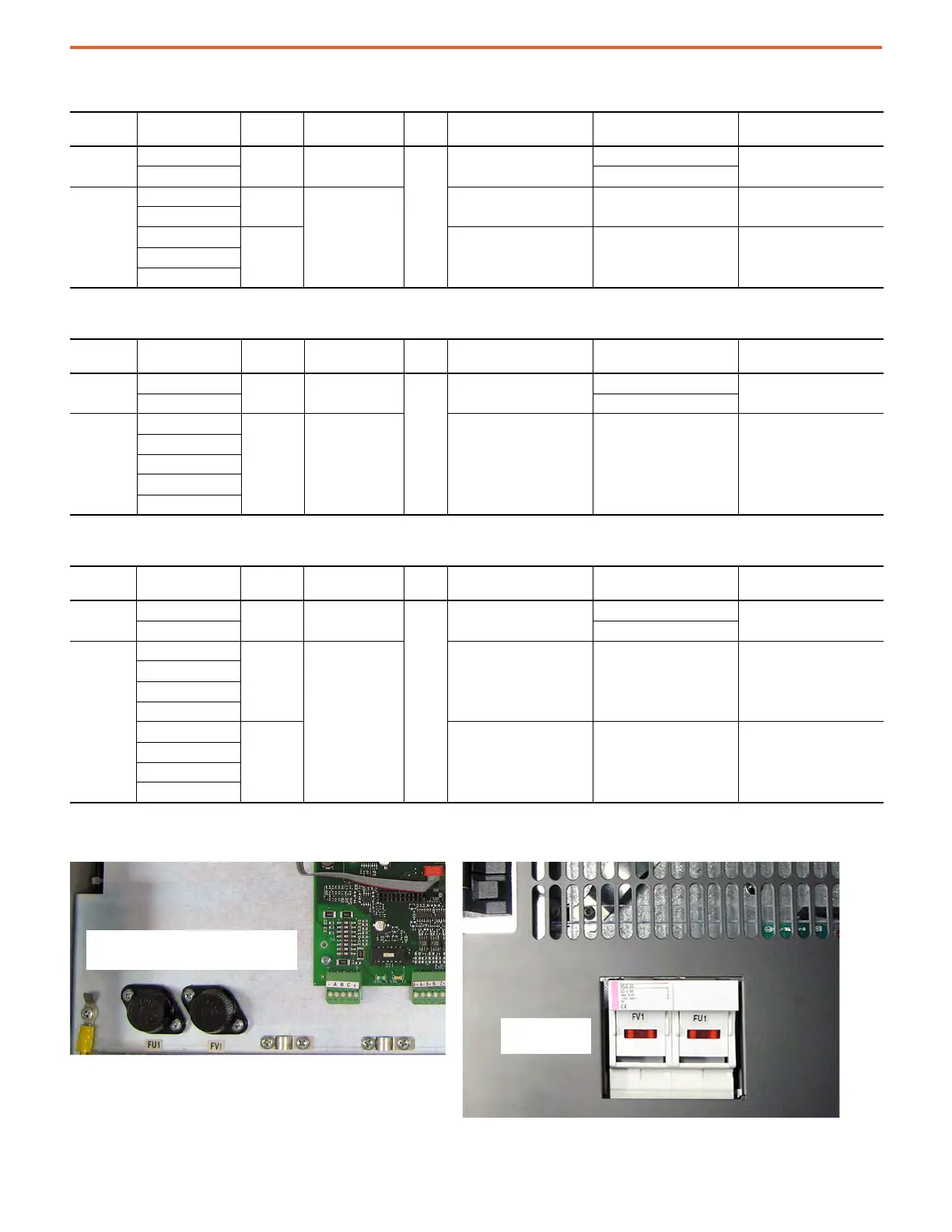

PowerFlex DC Frame C and D Drives Field Circuit Fuse Locations
460V AC Input Drives
Frame
Drive Current
Rating Code
Field Amps Type Qty Bussmann Mersen SIBA
C
495
20 10 x 38 mm
2
FWC-25A10F
A60Q25-2
6003305.25
667 A60Q25-8
D
830
40
22 x 58 mm
FWP-50A22F A70QS50-22F 5014006.50
996
1K1
70 FWP-100A22F A70QS100-22F 5014006.1001K3
1K4
575V AC Input Drives
Frame
Drive Current
Rating Code
Field Amps Type Qty Bussmann Mersen SIBA
C
540
20 10 x 38 mm
2
FWC-25A10F
A60Q25-2
6003305.25
675 A60Q25-8
D
810
40 22 x 58 mm FWP-50A22F A70QS50-22F 5014006.50
1K0
1K2
1K3
1K6
690V AC Input Drives
Frame
Drive Current
Rating Code
Field Amps Type Qty Bussmann Mersen SIBA
C
452
20 10 x 38 mm
2
FWC-25A10F
A60Q25-2
6003305.25
565 A60Q25-8
D
678
40
22 x 58 mm
FWP-50A22F A70QS50-22F 5014006.50
791
904
1K0
1K1
70 FWP-100A22F A70QS100-22F 5014006.100
1K2
1K4
1K5
Field AC input fuses are on the control EMI
shield, which holds the control board.
Top, left side of
drive control panel.
Frame C Drive Frame D Drive
