60 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data

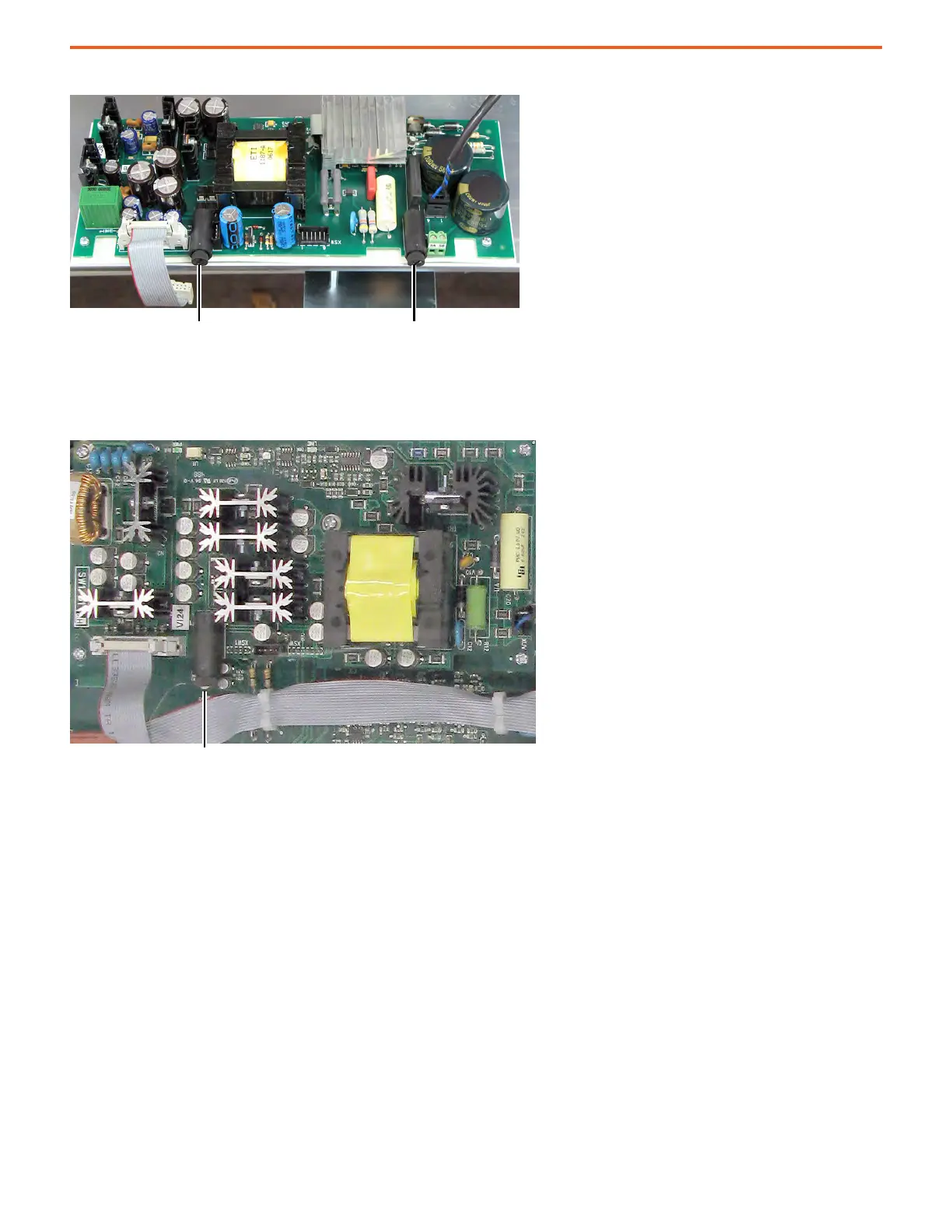

Frame C Switching Power Supply Fuse Location (only on PowerFlex DC Drives)
Frame D Switching Power Supply Circuit Board Fuse Location (only on PowerFlex DC Drives)
Fuses are on the switching power supply circuit board (SW-2)
on the back of the control EMI shield, which holds the control board.
F1 = 3.15 A fuse
(Board Rev. “H” and below only)
F2 = 2.5 A fuse
(Board Rev. “H” and below only)
The switching power supply circuit board is on the Control EMI shield.
Switching power supply fuse holder
