126 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 6 Frame 7 Components

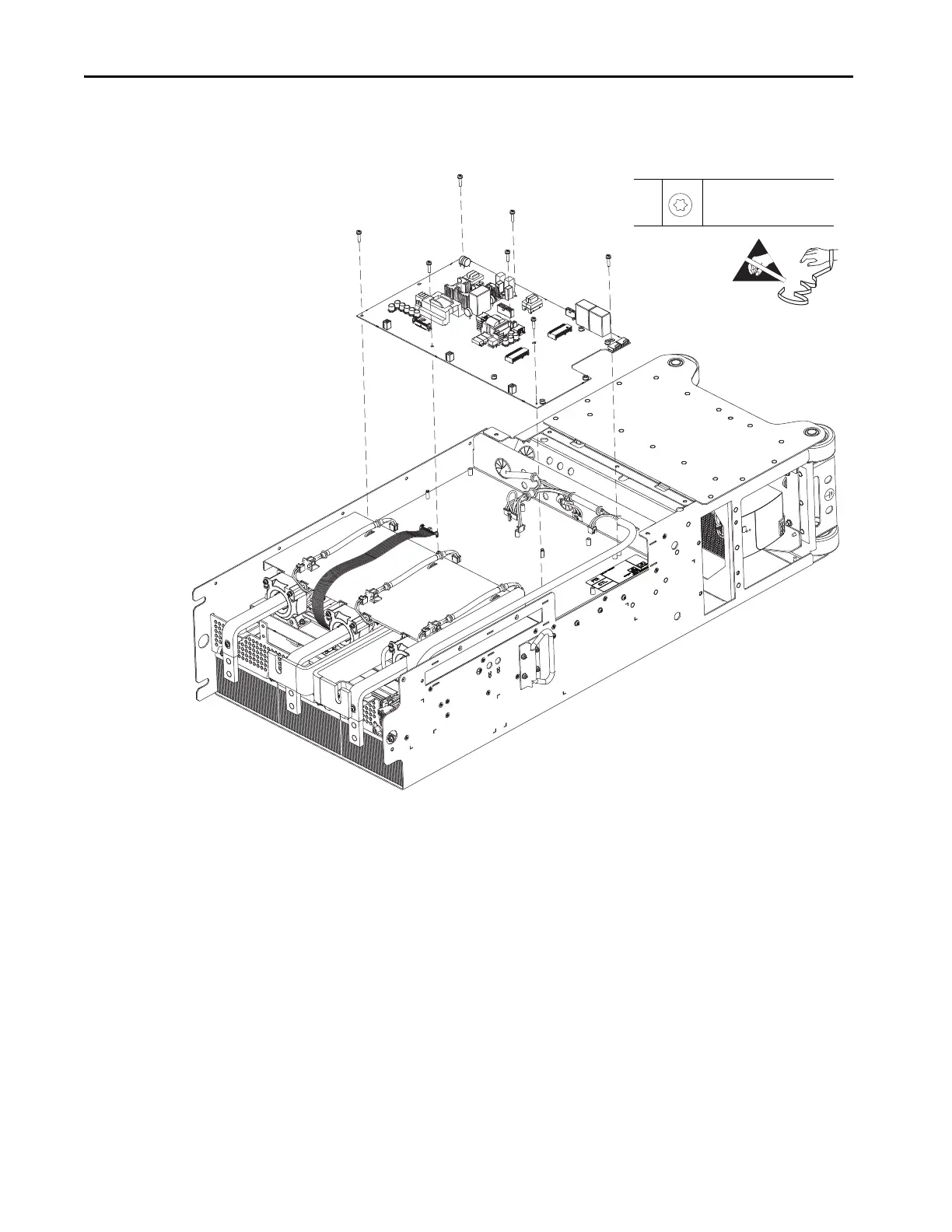

8. Remove the seven M4 x 18 mm torx screws that secure the power interface

circuit board to the EMI shield and remove the board.

Install the Power Interface Circuit Board

Install the power interface circuit board in the reverse order of removal.

M4 x 18 mm

T20

2.6 N•m (23.0 lb•in)
