Rockwell Automation Publication 750-TG100B-EN-P - June 2019 179
Input Bay Components Chapter 8
IP21/IP54 Roof Vent Filter
Replacement
Replace the IP21/IP54 roof vent filters with kit catalog number
SK-RM-IBFAN-54FLTR1. See IP21/IP54 Roof Vent Filter Replacement on
page 142
.
IP54/IP21 Roof Vent Fan
Replacement
Replace the IP54/IP21 roof vent fan with kit catalog number
SK-RM-IBFAN1-F8. See IP54/IP21 Roof Vent Fan Replacement on page 143
.
IP54/IP21, 400/600 mm
Wide Door Vent Filters
Replacement
Replace the IP54/IP21, 400/600 mm wide door vent filters with the appropriate
kit catalog number:
• 400 mm, SK-RM-IB4DR-FLTR1
• 600 mm, SK-RM-IB6DR-FLTR1

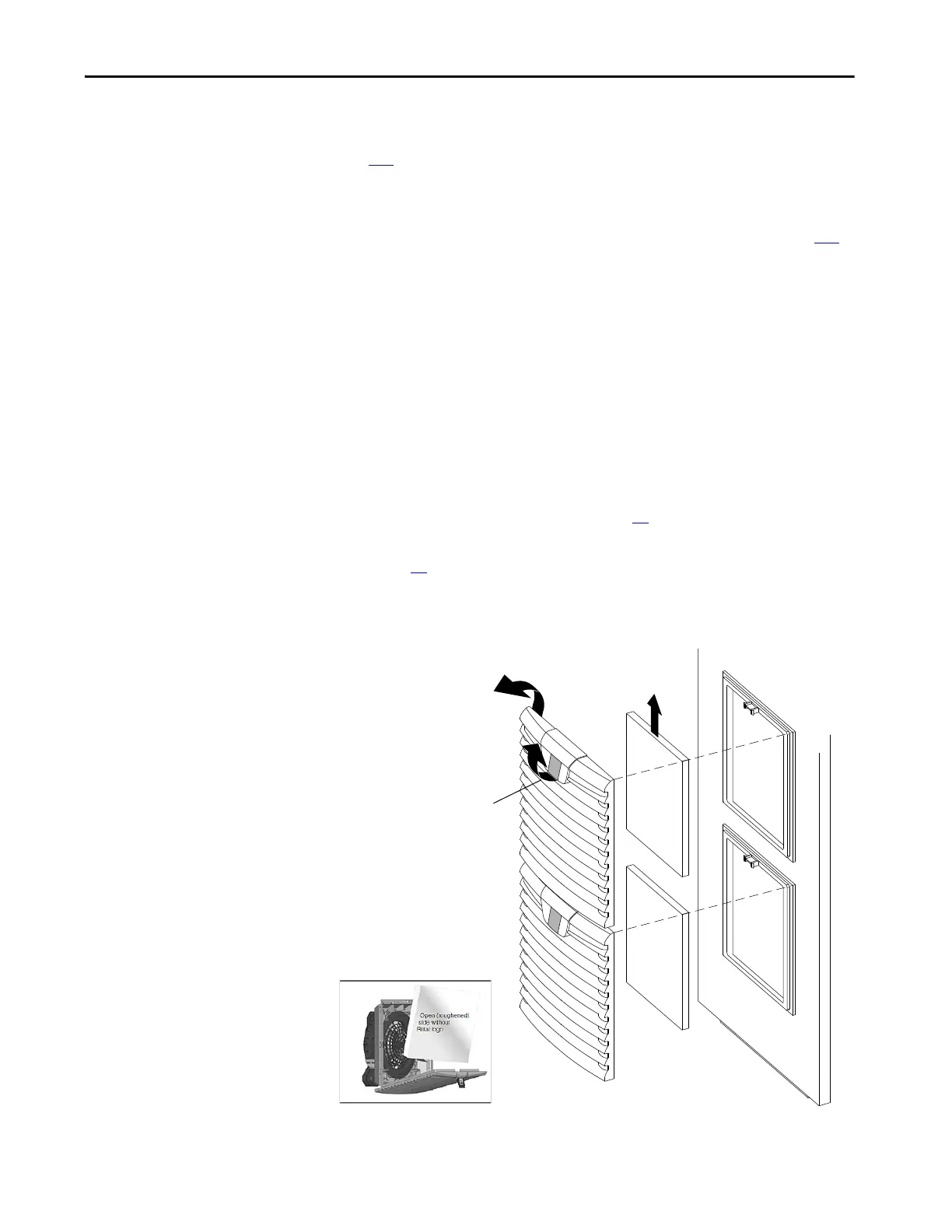

Remove the IP54/IP21, 400/600 mm Wide Door Vent Filters
Follow these steps to remove the IP54/IP21, 400/600 mm wide door vent filters.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Lift the tab on the top center of the vent cover and rotate out the cover.
4. Remove the fiber filter from the vent housing.
Vent Cover Shown Removed for Clarity Only
3
4
