Power Bay Components Chapter 9
IP54 Exhaust Vent Filters
Replacement
Replace the IP54 exhaust vent filters on a power bay with kit catalog number
SK-RM-PBFAN-54FLTR1.
Remove the IP54 Exhaust Vent Filters

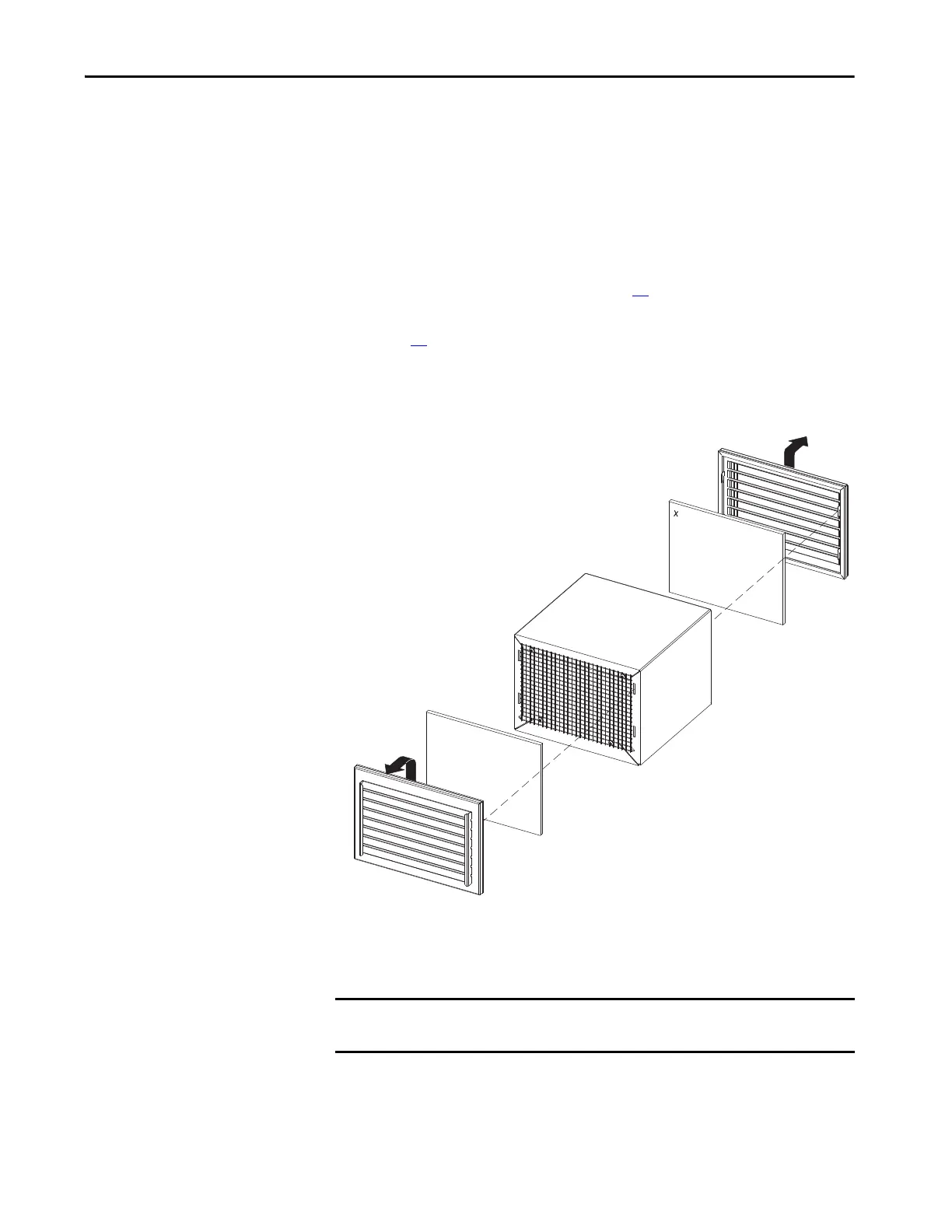

Follow these steps to remove the IP54 exhaust vent filters on a power bay.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Slide the vent up to release the tabs from the slots in the vent assembly and
remove the vent.
4. Remove the filter from the vent cover.
Install the IP54 Exhaust Vent Filters
Install the IP54 exhaust vent filters on a power bay in the reverse order of
removal.
IMPORTANT Verify that the airflow direction arrow and “X” on the fiber filter media points
inward, toward the interior of the enclosure.
