Rockwell Automation Publication 750-QS100B-EN-P - August 2020 29

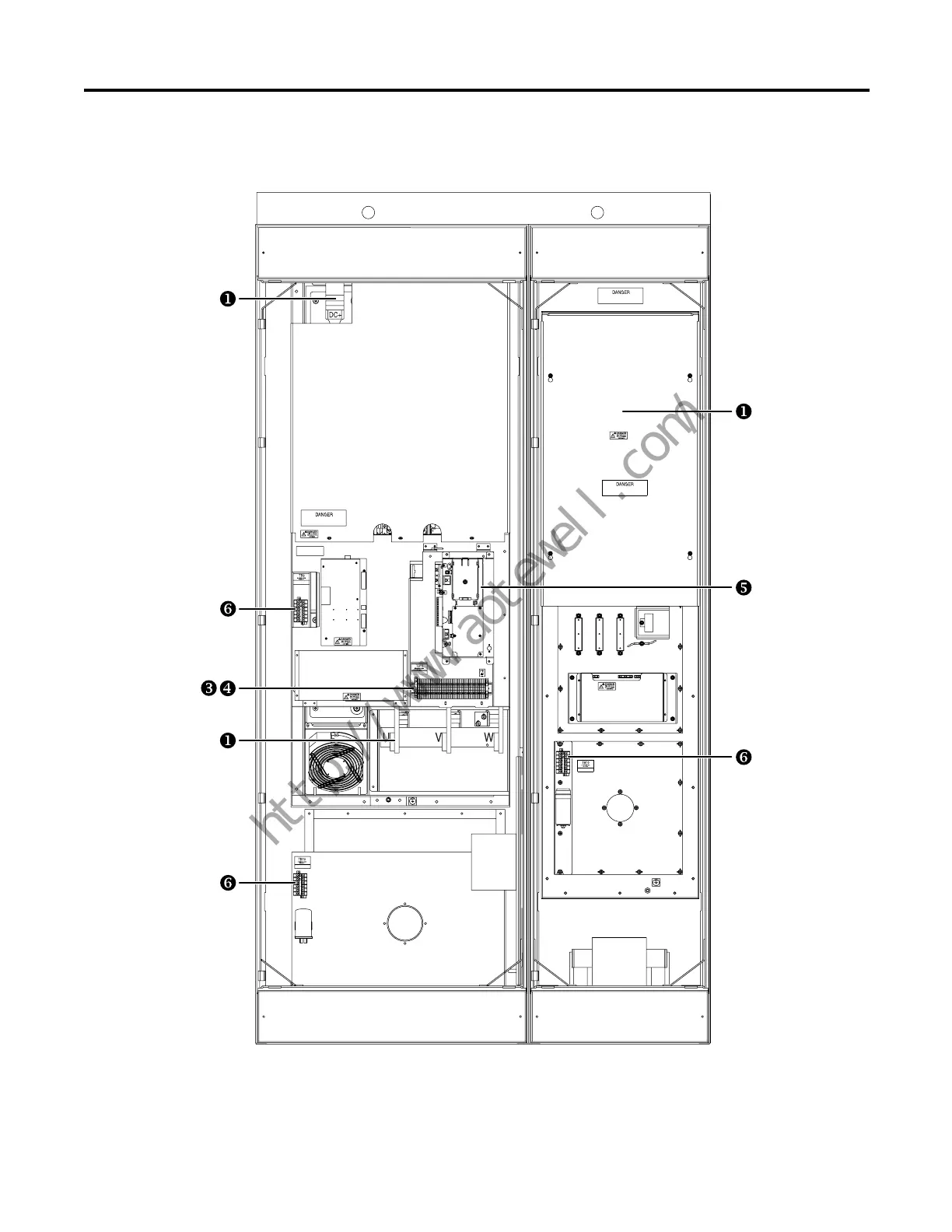

Step 5: Enter Motor Data
Step 5: Enter Motor Data
In this step, you configure the Motor Side Inverter Control using the motor data recorded in Ta b l e 1 on p a g e 8 .
Enter Motor Nameplate Data
1. Navigate to parameter 10:400 [Motor NP Volts]. Press the EDIT soft key.
2. Edit the motor nameplate voltage to match the data recorded in Ta b le 1
.
3. Press the ENTER soft key.
4. Navigate to parameter 10:401 [Motor NP Amps]. Press the EDIT soft key.
5. Edit the motor nameplate full load current in amps, to match the data collected Table 1
. Press the ENTER soft
key.
6. Navigate to parameter 10:402 [Motor NP Hertz]. Press the EDIT soft key.
7. Edit the motor nameplate fundamental frequency in Hertz, to match the data collected Ta b l e 1
.
8. Press the ENTER soft key.
9. Navigate to parameter 10:403 [Motor NP RPM]. Press the EDIT soft key.
10. Edit the motor nameplate base speed in RPM, to match the data collected Ta b l e 1
.
11. Press the ENTER soft key.
12. Navigate to parameter 10:405 [Mtr NP Pwr Units]. Press the EDIT soft key.
13. Edit the value to 0 ‘HP’ or 1 ‘kW’, to match the motor nameplate power units collected Table 1
.
14. Press the ENTER soft key.
15. Navigate to parameter 10:406 [Motor NP Power]. Press the EDIT soft key.
16. Edit the motor nameplate power, to match the data collected Table 1
.
17. Press the ENTER soft key.
To Next Page
