Rockwell Automation Allen-Bradley PowerFlex 700S Installation Instructions

PowerFlex 700S Phase II Drives DriveLogix Option Card Battery Extension Cable 5

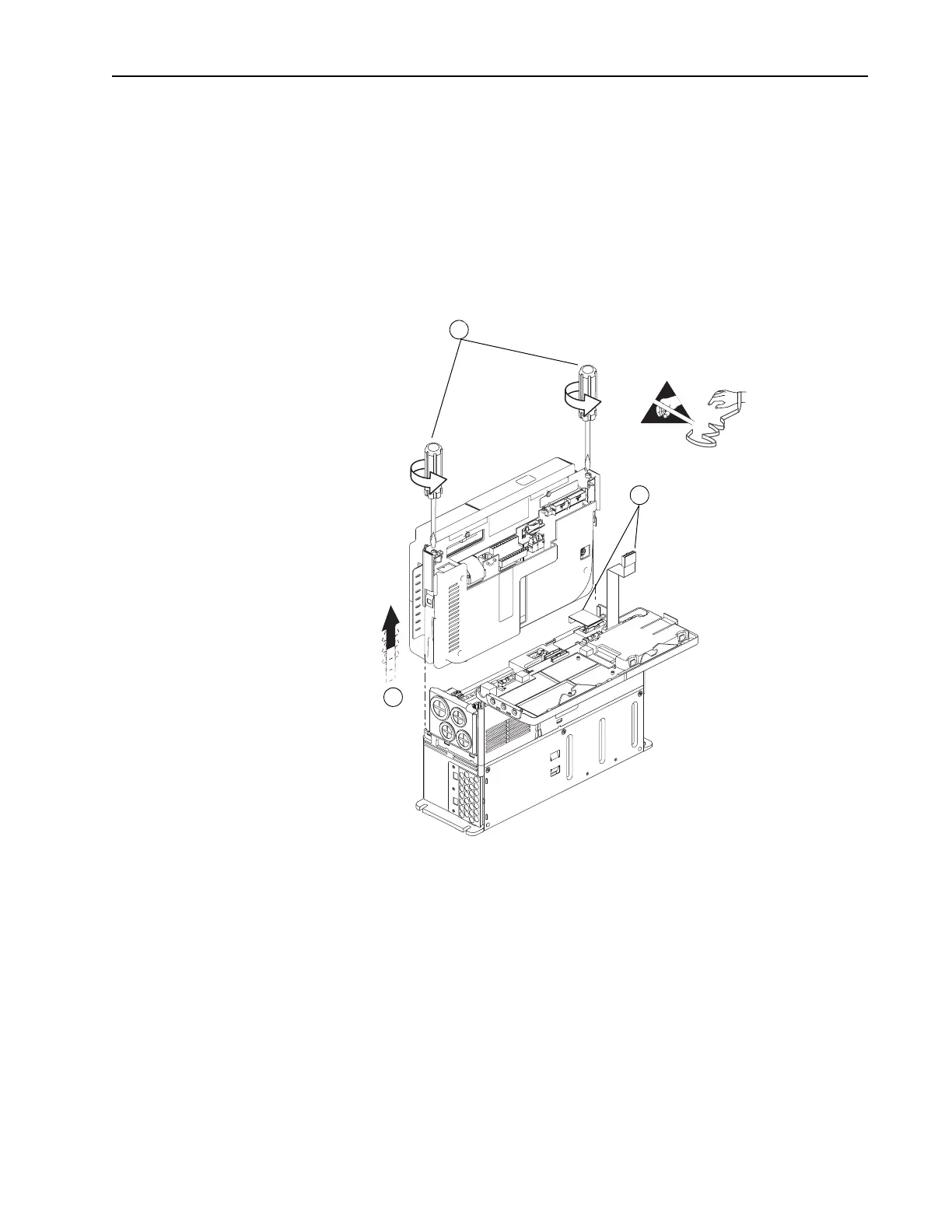

Frame 1 - 6 Size Drives
1. Unplug any fiber optic ControlNet and SynchLink cables and I/O from
the Control Assembly.
2. Disconnect the communications cables at the ends that connect to the
main control board.
3. Loosen the screws on the face of the control assembly.
4. Remove the control assembly from the drive.
2
3
4
=
