Rockwell Automation Allen-Bradley PowerFlex 700S Installation Instructions

6 PowerFlex 700S Phase II Drives DriveLogix Option Card Battery Extension Cable
Frames 10 - 13 Size Drives

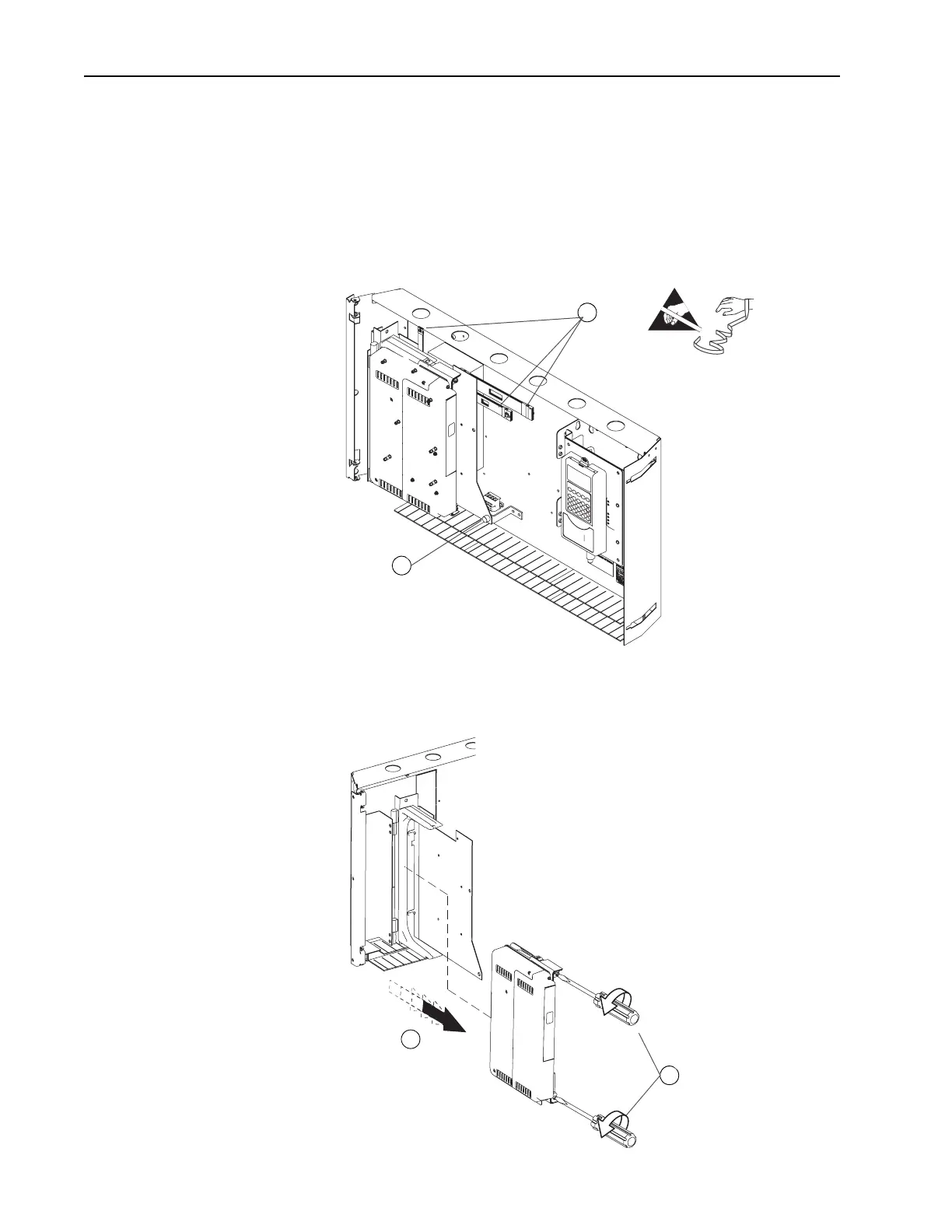

1. Unplug any fiber optic ControlNet, SynchLink cables and/or I/O wires
from the control assembly.
2. Unplug the communications cables from the control assembly.
3. Loosen the captive screw on the control mounting plate and swing the
control assembly away from the control frame.
4. Loosen the two screws on the face of the control assembly.
5. Remove the control assembly from the drive.
2
3
=
4
5
