PowerFlex 700S Phase II Drives DriveLogix Option Card Battery Extension Cable 7

Step 4: Installing the New

Battery Extension Cable,

Battery Clip and Battery

All Drive Sizes

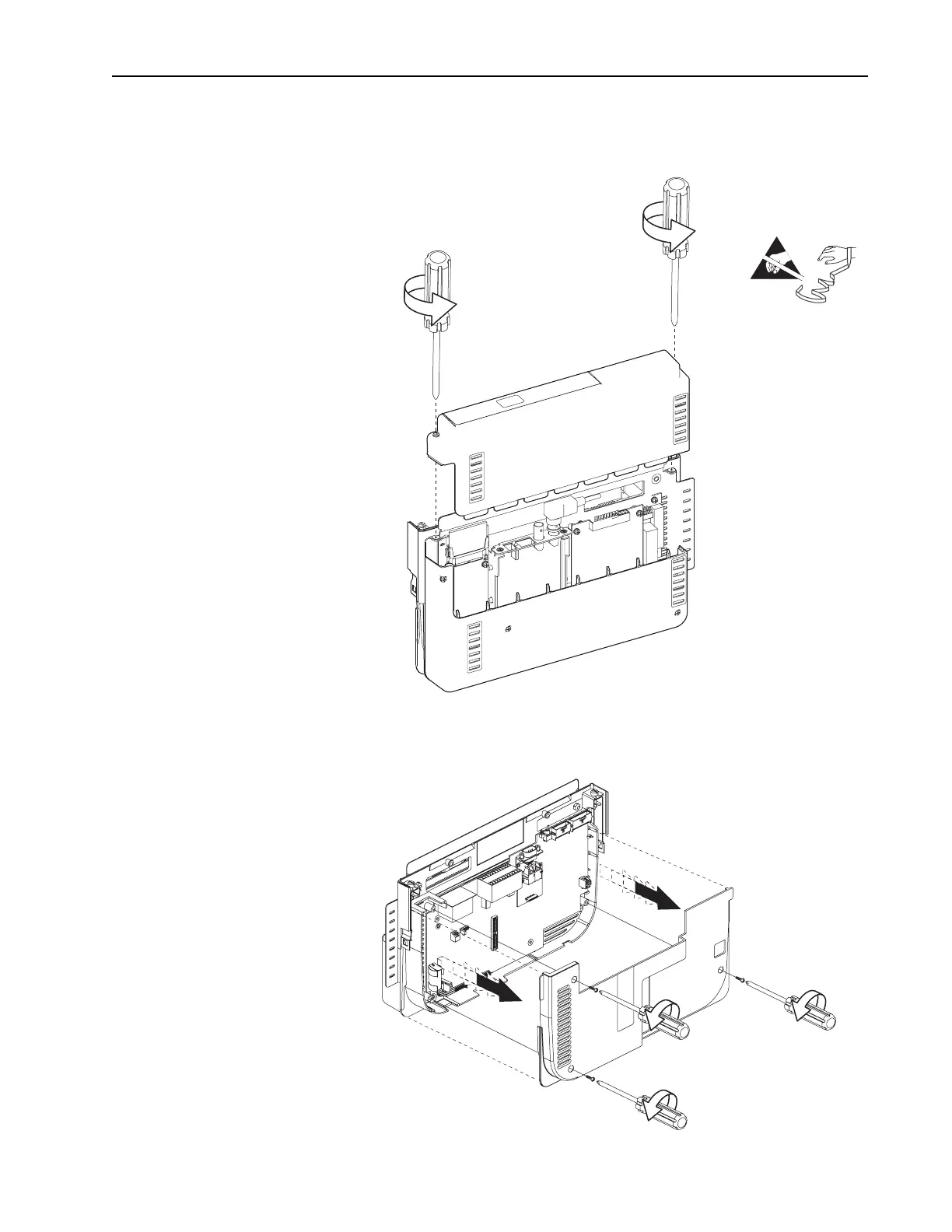

1. Loosen the screws on the front outside cover and remove the cover.

2. Remove the three screws securing the inside cover and remove the

cover.
