PowerFlex 700S Phase II Drives DriveLogix Option Card Battery Extension Cable 9

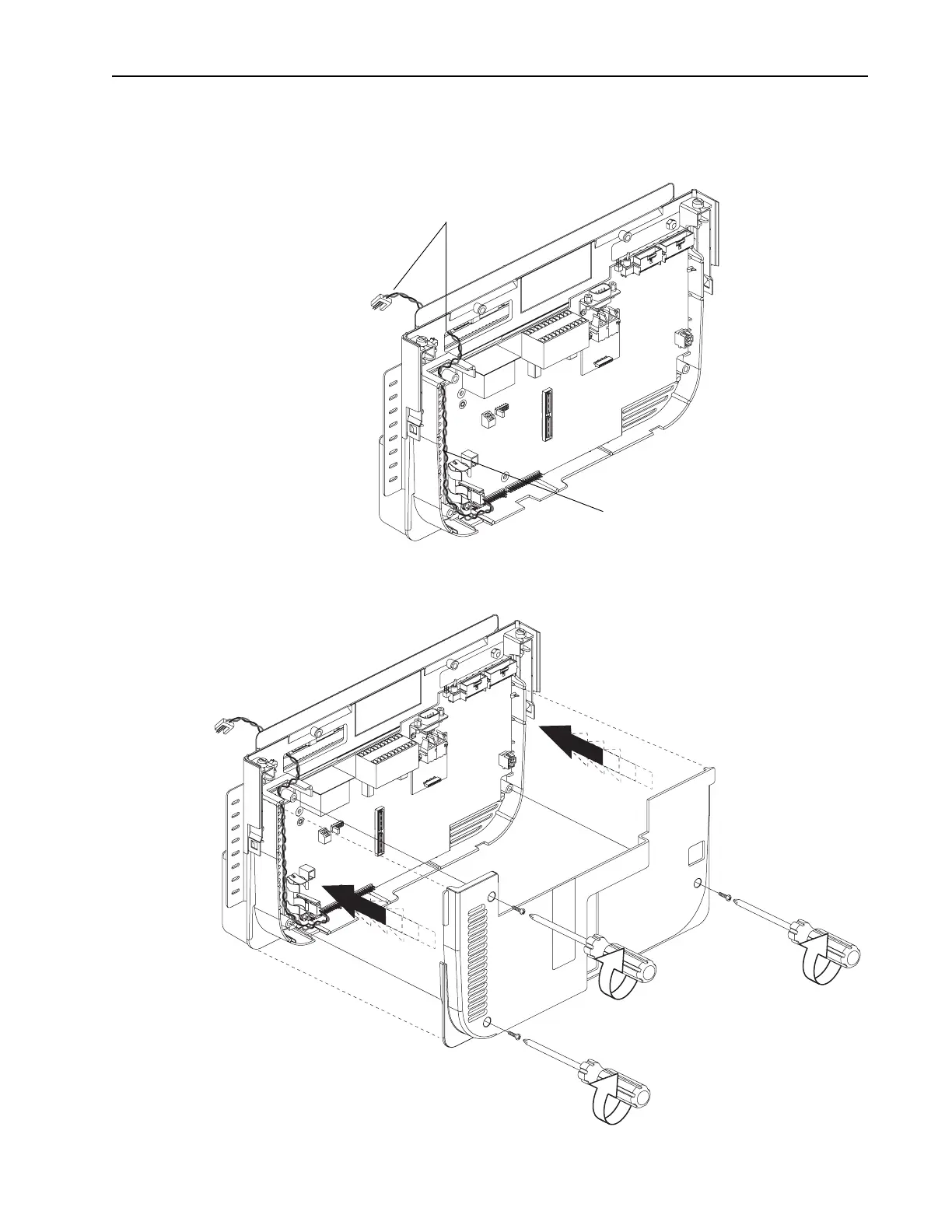

5. Route the extension wire through the cable tray at the bottom of the
control assembly and through the opening in the metal ground plate as
shown.
6. Install the inside cover.
Route extension wire
through cable tray
Route loose end through
opening in metal plate
